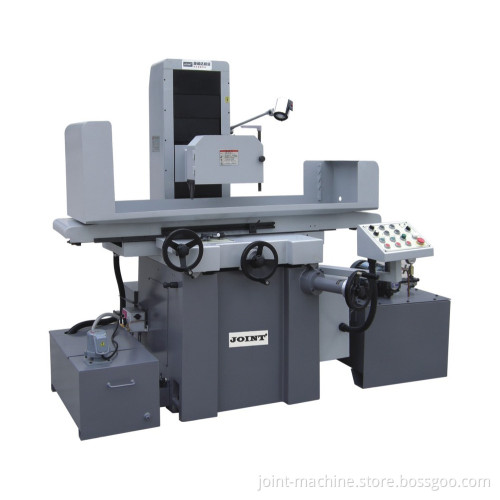

Megnatic surface grinding machine 306AHR with DRO

Megnatic surface grinding machine 306AHR with DRO   Specifications 1.Table Size:460*150mm;Travel:480*170mm    2.Processing accuracy<=0.005mm    3.CE Certification    4.Taiwan grinding head      Features Twice scraped slide way,which could assure the accuracy of the machine High quality electric components Radius tolerance of spindle<=0.002mm Vertical vertical value of ram slide way <=0.005mm Processing accuracy<=0.005

Model	306AHR
Table size	600*360 mm
Table travel (Longitude)	640 mm
Table travel (Crossward)	320 mm
Table side way	Slide way
Max.distance from spindle center to working table	580 mm
Auto crossward feed	0.1-8
Crossward feed of hand wheel (1Rev)	5
Crossward feed of hand wheel (1Div)	0.02
Vertical feed of hand wheel (1Rev)	2
Vertical feed of hand wheel (1Div)	0.01
Rotation speed	1450 rpm
Grinding wheel size	φ355*(20-45)*φ127
Spindle motor	5*4
Hydraulic motor	2*4
Crossward driving motor	0.08*4
Vertical driving motor	0.1*4
Dimension (L*W*H)	2040*1830*2090 mm
Net weight	2100 kg

    Standard Accessories Coolant system or Dust Clean Magnet Chuck (Below 250H)/Electrice Magnet Chuck (Above 250H) Working Light Tool and Toolbox     After-sales Service: Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty.         FAQ Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-15days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% in advance.and the rest payment should pay before delivery.   Q: How many years have your company established?
A: 20 years, our company built in 1995.
