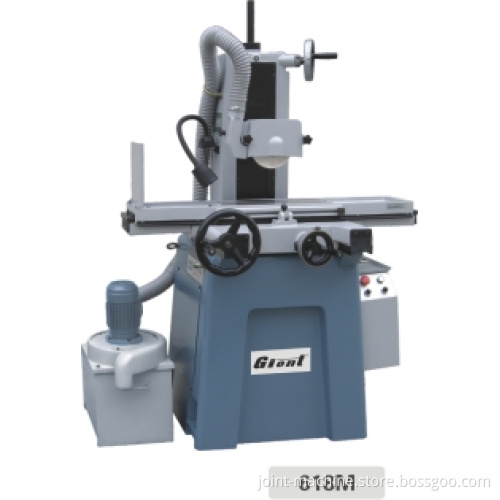

Technical specification of surface grinding machine 618M

Technical specification of surface grinding machine 618M Features 1.Taiwan grinding head.
2.CE certificate.
3.Mehanite cast.
4.OEM manufacturer. 5.Twice scraped slide way,which could assure the accuracy of the machine. 6.High quality electric components. 7.Radius tolerance of spindle<=0.002mm,vertical value of ram slide way<=0.005mm,processing accuracy<=0.005mm.   Specification:Grinding machine 618M

Model	618M
Table size	460*152mm
Table travel(Longitudinal)	470mm
Table travel(Cross ward)	160mm
Max.Distance from spindle to table	410mm
Spindle (Rotation speed)	2800rpm
Spindle (Rated power)	2HP
Auto feed of vertical handwheel (1Rev.)	1
Auto feed of vertical handwheel (1Div.)	0.005
Grinding wheel size	180*(3-13)*31.75mm
Magnet chuck size	150*350mm
Dimension	1200*1150*1980mm
Net weight	850kg

  Accessories: 1.Standard accessories: Coolant system or dust clean Working light Tool and toolbox Operation manual   2.Optional accessories: 5UM DRO 1UM DRO Magnet chuck    After-sales services: Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.     1.Workshop: Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.     2.Research and Development team: We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.     3.Certificate and Honour:
