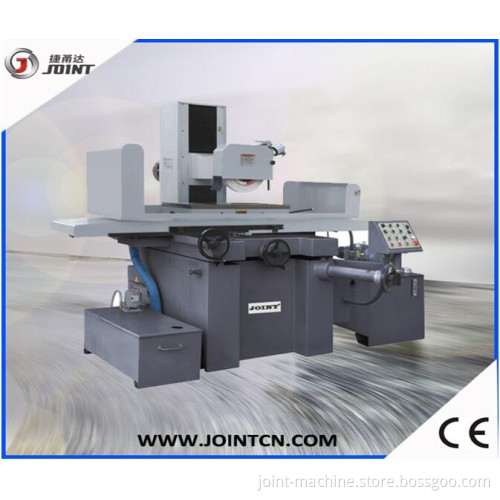

Magnetic chuck surface grinder machines for sale 84MSI

Magnetic chuck surface grinder machines for sale 84MSI   Features Durable, high precision and high quality Imported high accuracy grinding head High quality resinify cast, ageing treatment Taiwan high quality hydraulic system and high precision grinding head   Specification

Model	84MSI
Table size	800*400mm
Travel (Longitude)	840mm
Travel (Cross ward)	420mm
Table side way	Slide way
Max.Distance from the spindle center to working table	700mm
Auto crossward feed	0.1-8
Crossward feed of hand wheel (1Rev)	0.1/1
Crossward feed of hand wheel (1Div)	0.001/0.01
Auto vertical feed	0.001-0.999
Vertical rapid moving feed	150
Vertical feed of hand wheel (1Rev)	0.01/1
Vertical feed of hand wheel (1Div)	0.001/0.1
Rotation speed	1450rpm
Grinding wheel size	355*(20-40)*127
Spindle motor	7.5*4
Hydraulic motor	3*6
Crossward driven motor	9NM
Vertical driven motor	1*4
Coolant pump motor	0.12*2
Dimension	2300*3850*1980mm
Weight	3000kg

  Standard Accessories

1.Grinding wheel

2.Grinding wheel flange and puller

3.Wheel balancing test arbor

4.Diamond dresser with diamond

5.Machine Lamp

6.Leveling screw set

7.Lubrication oil

8.Operation manual

9.Test report

10.Tool and toolbox

11.Shackle

      After-sales Service: Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty.         Our production workshop Our company independent planning and construction of modern vertical machine center production line ,CNC milling machine production line ,Dragon frame CNC machine production line , electric discharge machine production line, milling machine production line, grinder machine production line, precise head assembly workshop etc.   Our certificate of honor
