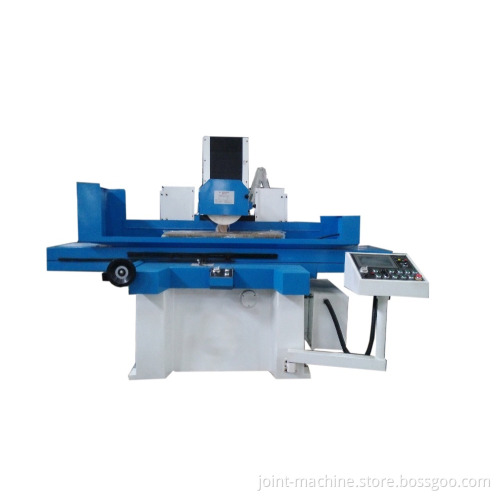

High precision magnetic chuck surface grinding machine 5010AHR

High precision magnetic chuck surface grinding machine 5010AHR     Features Twice scraped slide way,which could assure the accuracy of the machine High quality electric components Radius tolerance of spindle<=0.002mm Vertical vertical value of ram slide way <=0.005mm Processing accuracy<=0.005   Specification:5010AHR Grinding Machine

Model	5010AHR
Table size	1000×500mm
Table travel (Longitude)	1100mm
Table travel (Crossward)	540mm
Table side way	Slide way
Max.distance from spindle center to woeking table	700mm
Auto crossward feed	0.1-10
Crossward feed of hand wheel (1Rev)	5
Crossward feed of hand wheel (1Div)	0.02
Vertical rapid moving feed	180
Vertical feed of hand wheel (1Rev)	0.4
Vertical feed of hand wheel (1Div)	0.01
Rotation speed	1450rpm
Grinding wheel size	φ355×(20-40)×φ127
Spindle motor	7.5×4
Hydraulic motor	3×6
Crossward driving motor	0.05×4
Vertical driving motor	0.1×4
Coolant  pump motor	0.12×2
Dimension (L*W*H)	2800×2800×2280mm
Net weight	3900kg

    Standard Accessories Coolant system or Dust Clean Magnet Chuck (Below 250H)/Electrice Magnet Chuck (Above 250H) Working Light Tool and Toolbox     After-sales Service Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty.         FAQ Q: Are you trading company or manufacturer ?
