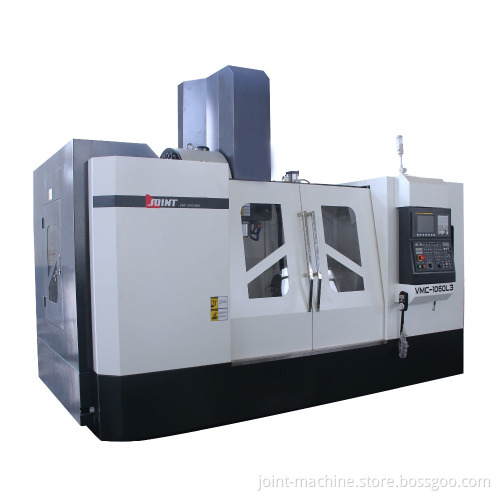

Auto tool change cnc machine center metal VMC-1060L3

Auto tool change cnc machine center metal VMC-1060L3   Detailed Product Description  1.Leaner way with small friction embodies quick response
 2.Machine parts are world famous brand
 3.OEM manufacturer
 4.CE certificate     Features Mehanite casting,computer analysis facilities are used in its manufacturing,wide distance slide way makes outstanding rigidity. Pre-pressed and pre-tense double screw assures feeding high accuracy.Special design of slide way and auto lubrication system ensures the accuracy long-time of the machine. Precisely scrapped and Turcite B coated slide way makes machines run smoothly. X,Y axis are assembled with linear way, Linear device is closely fixed on the cast.Who has the features of small touch area,small friction;hence each machine embodies.Quickly response,good dynamic performance,fast feed rate,and high positioning accuracy.   Specification: CNC machine center VMC-1060L3

Model	VMC-1060L3
Table size	1300×600 mm
Travel (Longitude)	1000 mm
Travel (Crossward)	600 mm
Travel (Vertical)	600 mm
Distance between spindle and table	170-770 mm
Distance between spindle and column	660 mm
Spindle (Rotation speed)	8000/10000*/direct connection  12000*/direct connection 15000*
Spindle (Taper)	BT40
Spindle (Motor)	11 kw
Rapid feed (Longitude)	30(Max36) m/min
Rapid feed (Crossward)	30(Max36) m/min
Rapid feed (Vertical)	30(Max36) m/min
Cutting feed	10 m/min
Positioning accuracy	0.008 mm/m
Min.set moving unit	0.001 mm
Dimension (L*W*H)	3300×2690×2950 mm
Net weight	7900 kg
Max.load of table	800 kg

  Accessories 1.Standard Accessories Control system Electronic Hand wheel Cover Auto Lubrocation od Slide way Coolant system Operation Manual of Machine Operation Manual of Control System Cutting Fluid and Filter System Stainless Steel Covers of Slide way Alarming Light Hammer Balance Tool and Toolbox 2.Optional Accessories Milling chuck and Tool Uniock Arm type or Umbrella type Tool Magazine Auto Chip Conveyor Oil Coolant  The Fourth Axis NC Dividing Head of Rotary Table Heat Exchanger     After-sales services Warranty is one year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.       FAQ Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-15days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% in advance.and the rest payment should pay before delivery.   Q: How many years have your company established?
A: 20 years, our company built in 1995.
