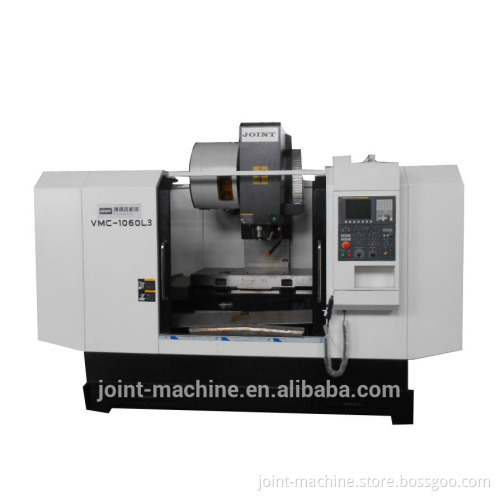

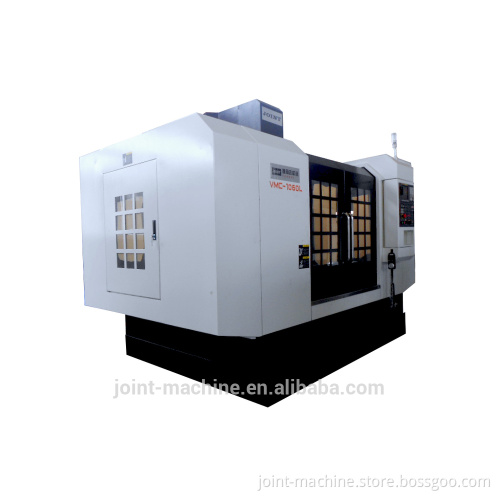

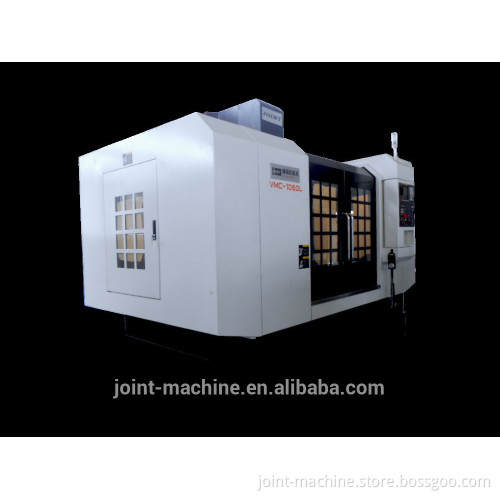

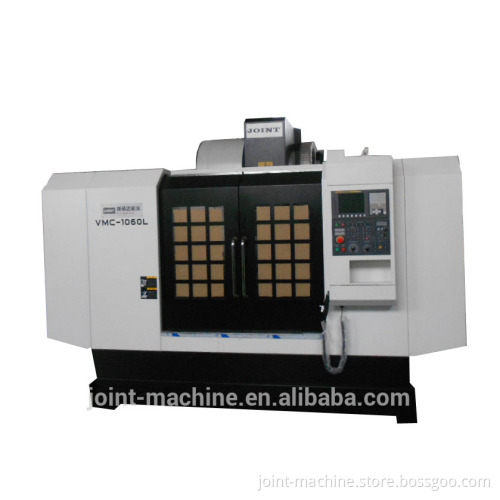

High precision linear way CNC machine center VMC-1060L

high precision linear way CNC  machine  center VMC-1060L Specifications   1.Fanuc /Mitsubishi/Siemens machining center
2.BT40 Spindle taper
3.7.5kw Spindle motor
4. 8000rpm Spindle rotation speed



Model	VMC1060L
Table size	1300*600MM
Table travel	1000*590*600MM
Distance between spindle and table	70-670MM
Distance between spindle and column	655MM
Spindle rotation speed	7000/8000RPM
Spindle taper	BT40
Spindle motor	11KW
Rapid feed	24*24*12M/MIN
Cutting feed	8M/MIN
Positioning accuracy	0.008MM/M
Min enactment move unit	0.001MM/M
Dimension(L*W*H)	3300*2400*2950MM
Net weight	7500KGS
Max loaded of table	600

    1.Standard accessoires: Control system Electronic hand wheel Cover Auto lubrication of slide way Coolant system Operation manual of machine Operation manual of control system Cutting fluid and filter system Stainless steel covers of slide way Alarming light Hammer balance Tool and toolbox    2.Optional accessories: Milling chuck and tool unlock Arm type or umbrella type tool magazine Auto chip conveyor Oil coolant The fourth axis NC dividing head or rotary table Heat exchanger
