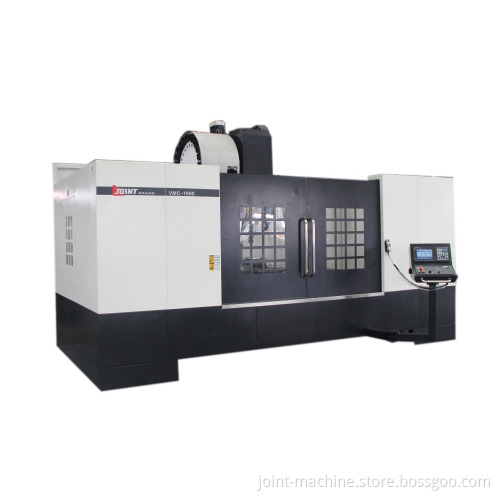

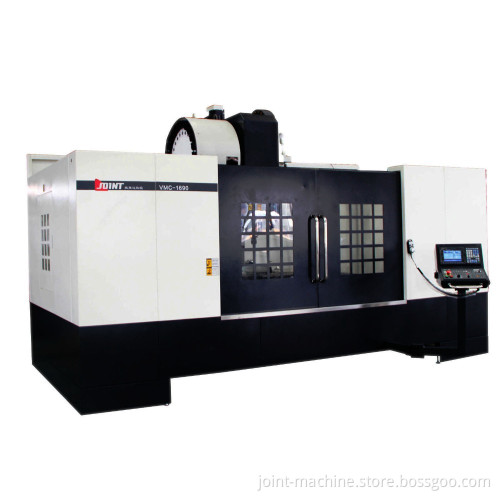

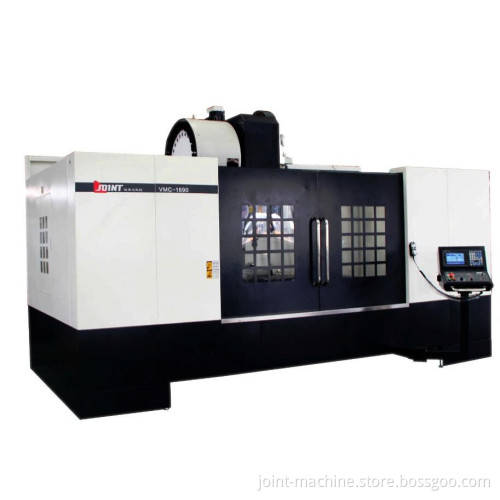

Linear way large CNC vertical machine center VMC-1690L

Linear way large CNC vertical machine center VMC-1690L Detailed Product Description 1.Table travel 1200*700*600mm
2.Rapid feed 24*24*12m/min
3.Max.loaded of table 1000kgs
4.OEM manufacturer
5.CE certificate   Features: 1. Mehanite casting,computer analysis facilities are used in its manufacturing,    wide distance slide way makes outstanding rigidity. 2.Pre-pressed and pre-tense double screw assures feeding high accuracy.    Special design of slide way and auto lubrication system ensures the accuracy    long-time of the machine. 3.Precisely scrapped and Turcite B coated slide way makes machines run smoothly. 4.X,Y axis are assembled with linear way, Linear device is closely fixed on the cast   Who has the features of small touch area,small friction;hence each machine embodies   Quickly response,good dynamic performance,fast feed rate,and high positioning accuracy.   Specification:Vertical machine center VMC-1690L

Model	VMC-1690L
Table size	1800*900
Table travel	1600*900*600mm
Distance between spindle and table	160-760mm
Distance between spindle and column	950mm
Spindle rotation speed	8000rpm
Spindle taper	BT50/φ155
Spindle motor	15/18.5kw
Rapid feed	24*24*18m/min
Cutting feed	8m/min
Positioning accuracy	0.008mm/m
Min Enactment move unit	0.001mm
Dimension(L*W*H)	4860*4300*3600mm
Net weight	13200kgs
Max.Loaded of table	1600kgs

  Accessories: 1.Standard accessoires: Control system Electronic hand wheel Cover Auto lubrication of slide way Coolant system Operation manual of machine Operation manual of control system Cutting fluid and filter system Stainless steel covers of slide way Alarming light Hammer balance Tool and toolbox    2.Optional accessories: Milling chuck and tool unlock Arm type or umbrella type tool magazine Auto chip conveyor Oil coolant The fourth axis NC dividing head or rotary table Heat exchanger            Photo: 1.Workshop: Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.        2.Research and Development team: We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.
