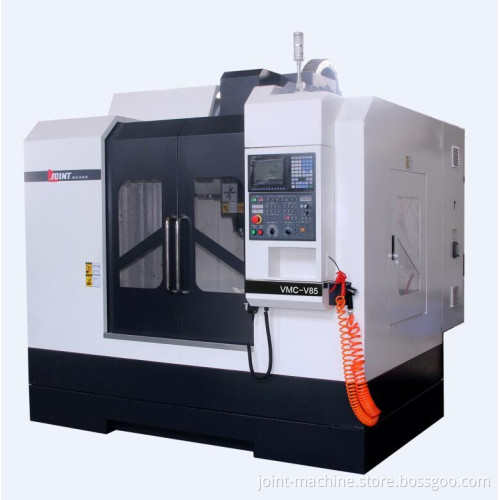

Cheap cnc vertical machining center for sale V85

Product Description 1. The optimum systematized design with high speed, high precision and high rigidity.
2. H86 with high increased travel to meet wide range of use.
3. Global top top brand key parts to make sure high quality.
4. Applicable for processing precise parts and mould.

Table size	450*900mm
Travel	800*500*500mm
Distance between spindle nose and table	170-670mm
Spindle (Rotation speed)	10000/12000/15000RPM
Spindle (Taper)	BT40-140 short nose spindle
Spindle (Motor)	7.5KW
T slot	3-18*130
ATC type	Arm type tool magazine with 24 tools
Time of changing tool (T-T）	2.5S
Rapid feed	48*48*48m/min
X/Y/Z axis motor	12/12/20NM
Max cutting feed	15m/min
Positioning accuracy	0.006mm
Min.set moving unit	0.001mm
Dimension	2450*2180*2650mm
Net weight	3800kgs
Max.load of table	500kgs

Accessories 1.Standard accessoires: Control system
Electronic hand wheel
Cover
Auto lubrication of slide way
Coolant system
Operation manual of machine
Operation manual of control system
Cutting fluid and filter system
Stainless steel covers of slide way
Alarming light
Hammer balance
Tool and toolbox  2.Optional accessories: Milling chuck and tool unlock
Arm type or umbrella type tool magazine
Auto chip conveyor
Oil coolant
The fourth axis NC dividing head or rotary table
Heat exchanger Our Service Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra. Our Company Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc. Packing & QC Our Certification
