Operation Control System Flat Style High Precison CNC Lathe Machine

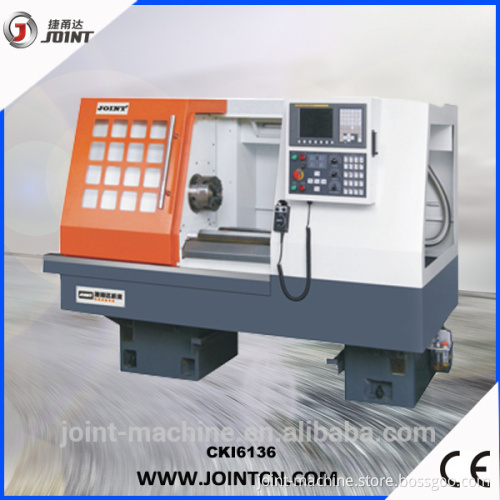

Operation Control System Flat Style High Precison CNC Lathe Machine  Product Features   Machine body guide way are quenched for better resistance of abrasion,and increased stability and accuracy. Models above 1650 adopt gear box transmission design,and are equipped with inverter spindle motor which can enable strong cutting force with 3-level gear speed,and change rotation speed by controller system at each speed level. Optional control system: GSK Control System,KND Control System and Fanuc Mate Control System      Flat Style CNC Lathe Machine CKI6136 Specifications

Model	CKI6136
Max swing diameter over bed	420mm
Max swing diameter over carriage	230mm
Max length of workpiece	750mm
Spindle rotation	2800rpm
Spindle taper of front taper	A2-6/MT6
Max moving speed of X axis	6m/min
Max moving speed of Z axis	8m/min
Repeat positioning accuracy	0.01mm
Size of squre tool	20*20mm
Diameter of sleeve	φ65
Power capacity	9kw/h
Dimension(L*W*H)	2385*1200*1800mm
Net weight	1600kg
Travel of tailstock	100mm
Taper of tailstock	MT4

  Accessories Standard accessories                        Optional accessories   ♦ Four position electronic turret                                            ♦ 4-jaw chuck ♦ 3-jaw chuck                                                                              ♦ Six position electronic turret ♦ Tool and tool box                                                                    ♦ Hydraulic tailstock                                                                                                         ♦ Fanuc Mate Control System   Applications Our Services   Packaging & Shipping     Company Information     SHENZHEN Joint Industry Co., Ltd specialized in R&D and manufacturing mold processing and machinery parts processing equipments.We developed high quality and high-tech research,development,manufacturing,service team and management system,and expanded products to more than 10 series from milling machines, to machine centers.    With the exceptional quality products and distinctire brand reputation,our products are sold to more than 40 developed cities all over China,and also to more than 20 countries all over the world across Asia,Europe and America. Our production workshop   Our company independent planning and construction of modern vertical machine center production line ,CNC milling machine production line ,Dragon frame CNC machine production line , electric discharge machine production line, milling machine production line, grinder machine production line, precise head assembly workshop etc. Certifications FAQ
