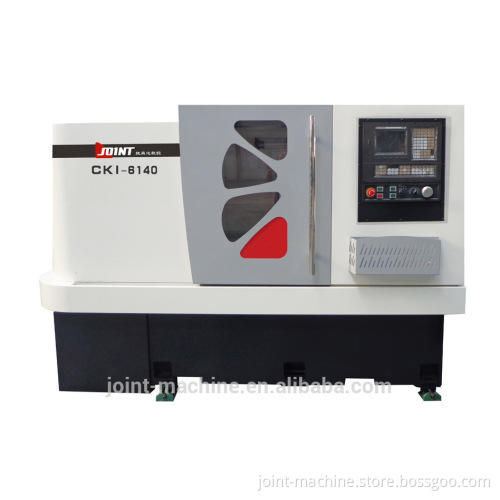

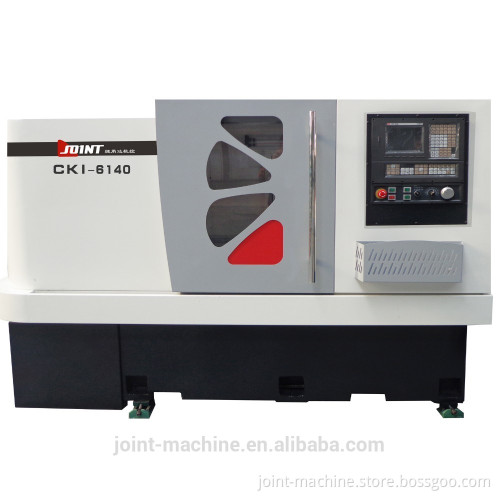

High stability and high accuracy CNC lathe machine CKI6140

Specifications   1.OEM Manufacturer
2.Positioning accuracy 0.005mm/m
3.Spindle taper of front taper MT6
4.Taper of tailstock MT4

  Features: 1.OEM Manufacturer.
2.Harded & quenched slideway with Turcite B coated.
3.Imported ball screw.
4.Positioning accuracy 0.005mm. 5.The slide way of the machine processed by ultra-sound audio quenching and fine grinding to assure its good hardness and high rigidity. 6.Automatically lubrication for slide way and leading screw can bring the results following:flexibly operation,low hot deformation,accuracy and stability. 7.Electric four station tools make use of precise gear plate positioning to assure high accuracy for repeat positioning. 8.Double locking mechanism for tail stock.Elastic wheel installed at bottle side to make movement easily. 9.High rigid base structure.   Specification:Flat bed NC lathe CKI6140

Model	CKI6136
Max swing diameter over bed	420mm
Max swing diameter over carriage	230mm
Max length of workpiece	750mm
Max.Travel of X axis	175mm
Max.Travel of Y axis	550mm
Diameter of spindle hose	52mm
Spindle rotation	50-2500rpm
Spindle taper of front taper	Metric8 0 /A2 - 6
Max moving speed of X axis	6m/min
Max moving speed of Z axis	8m/min
Repeat positioning accuracy	0.005mm
Size of squre tool	20*20mm
Power capacity	10kw/h
Dimension(L*W*H)	2150*1190*1640mm
Net weight	1600kg
Taper of tailstock	60mm
Travel of tailstock	130mm
Taper of tailstock	MT4
Chuck size	A6/200

    Accessories: 1.Standard accessories: four station tools coolant system auto lubrication working light operation manual tool and toolbox 3-jaw chuck leveling pedestal   2.Optional accessories: 4-jaw chuck hydraulic chuck Optional system: Fanuc system:oi-mate-tc GSK980TDA   After-sales services: Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.   Photos: 1.Workshop: Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.   2.Research and Development team: We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.   3.Certificate and Honour: 1.8 Intellectual property rights and 5 the patents 2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field. 3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China. 4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”. 5.We have introduced ISO9001:2008 in 2009. 6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS. 9
