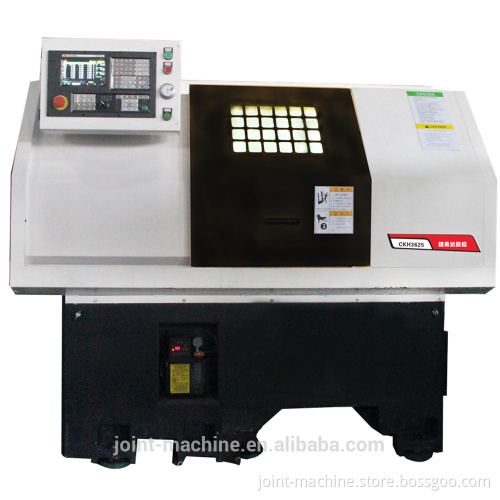

Mini CNC Turning Lathe Machine for Metal Cutting CKH3625

  Mini CNC Turning Lathe Machine for Metal Cutting CKH3625   Product Features   Machine body guide way are quenched for better resistance of abrasion,and increased stability and accuracy. Models above 1650 adopt gear box transmission design,and are equipped with inverter spindle motor which can enable strong cutting force with 3-level gear speed,and change rotation speed by controller system at each speed level. Optional control system: GSK Control System,KND Control System and Fanuc Mate Control System      Mini CNC Turning Lathe Machine Specifications

Model		CKH3625
Max. Swing diameter over table	mm	360
Max. Swing diameter over slide	mm	160
Max processing length	mm	200
Max X axis travel	mm	200
Max Z axis travel	mm	250
Processing mode	mm	Tool-Squence/ Four Position Electrical Tool Turret
Spindle	mm	Hydraulic sleeve spindle
Tool Number	mm	4-6
Bar material diameter	mm	40
Spindle bore diameter	mm	48
Spindle motor	kw	4
Spindle rotation speed	rpm	100-3000
Max moving speed of X axis	m/min	12
Max moving speed of X axis	m/min	12
Power of chuck		Manual / Hydraulic
Specifications of chuck	mm	φ160
Positioning accuracy	mm	0.01
Power capacity	kw/h	8.5
Dimension(L*W*H)	mm	1750*1100*1600
Net weight	kg	1800

Accessories Standard accessories                        Optional accessories   ♦ Four position electronic turret                                            ♦ 4-jaw chuck ♦ 3-jaw chuck                                                                         ♦ Six position electronic turret ♦ Tool and tool box                                                                ♦ Hydraulic tailstock                                                                                              ♦ Fanuc Mate Control System   Applications
