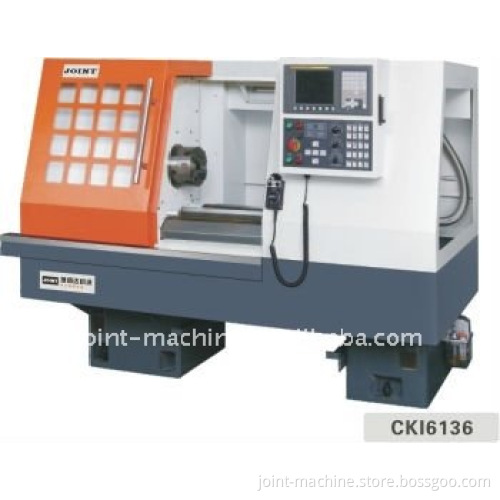

China CNC lathe bar feeder machine CKI6136

China CNC lathe bar feeder machine CKI6136   Features 1.OEM Manufacturer.
2.Harded & quenched slideway with Turcite B coated.
3.Imported ball screw.
4.Positioning accuracy 0.005mm.   5.The slide way of the machine processed by ultra-sound audio quenching and fine grinding to assure its good hardness and high rigidity.   6.Automatically lubrication for slide way and leading screw can bring the results following:flexibly operation,low hot deformation,accuracy and stability.   7.Electric four station tools make use of precise gear plate positioning to assure high accuracy for repeat positioning.   8.Double locking mechanism for tail stock.Elastic wheel installed at bottle side to make movement easily.   9.High rigid base structure.

Model	CK6163
Max swing diameter over bed	630mm
Max swing diameter over carriage	350mm
Max length of workpiece	800/1300mm
Max.Travel of X axis	175mm
Max.Travel of Y axis	550mm
Diameter of spindle hose	105mm
Spindle rotation	10-1000rpm
Spindle taper of front taper	Metric8 0 /A2 - 6
Max moving speed of X axis	6m/min
Max moving speed of Z axis	8m/min
Repeat positioning accuracy	0.01mm
Size of squre tool	20*20mm
Power capacity	11kw/h
Dimension(L*W*H)	3500*1500*1700mm
Net weight	3000kg
Taper of tailstock	60mm
Travel of tailstock	130mm
Taper of tailstock	MT5
Chuck size	A6/200

    1.Standard accessories: four station tools coolant system auto lubrication working light operation manual tool and toolbox 3-jaw chuck leveling pedestal   2.Optional accessories: 4-jaw chuck hydraulic chuck Optional system: Fanuc system:oi-mate-tc GSK980TDA   After-sales services: Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.
