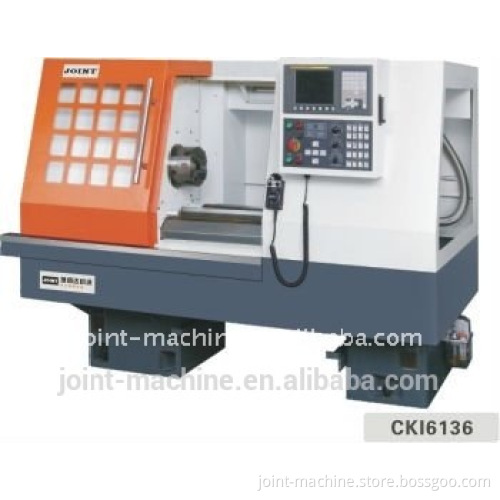

High quality flat bed type CNC lathe machine CKI6136

High quality flat bed type CNC lathe machine CKI6136 Features: 1.OEM Manufacturer.
2.Harded & quenched slideway with Turcite B coated.
3.Imported ball screw.
4.Positioning accuracy 0.005mm. 5.The slide way of the machine processed by ultra-sound audio quenching and fine grinding to assure its good hardness and high rigidity. 6.Automatically lubrication for slide way and leading screw can bring the results following:flexibly operation,low hot deformation,accuracy and stability. 7.Electric four station tools make use of precise gear plate positioning to assure high accuracy for repeat positioning. 8.Double locking mechanism for tail stock.Elastic wheel installed at bottle side to make movement easily. 9.High rigid base structure.   Specification:Flat bed NC lathe CKI6136

Model	CKI6136
Max swing diameter over bed	400mm
Max swing diameter over carriage	210mm
Max length of workpiece	750mm
Max.Travel of X axis	175mm
Max.Travel of Y axis	550mm
Diameter of spindle hose	52mm
Spindle rotation	50-2500rpm
Spindle taper of front taper	MT6
Max moving speed of X axis	6m/min
Max moving speed of Z axis	8m/min
Repeat positioning accuracy	0.005mm
Size of squre tool	20*20mm
Power capacity	10kw/h
Dimension(L*W*H)	2150*1190*1640mm
Net weight	1500kg
Taper of tailstock	60mm
Travel of tailstock	130mm
Taper of tailstock	MT4
Chuck size	A6/200

  Accessories: 1.Standard accessories: four station tools coolant system auto lubrication working light operation manual tool and toolbox 3-jaw chuck leveling pedestal   2.Optional accessories: 4-jaw chuck hydraulic chuck Optional system: Fanuc system:oi-mate-tc GSK980TDA
