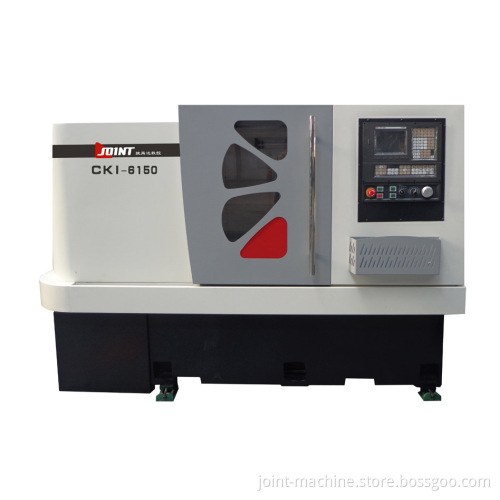

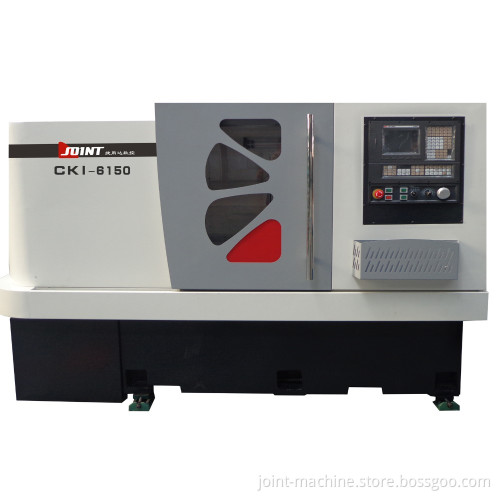

Joint High speed and great flat type CNC lathe machine CKI6150

Joint High speed and great flat type CNC lathe machine CKI6150   Specifications  1.Max swing diameter over bed :500mm
2:Max swing diameter over carriage :290mm
3.Max length of workpiece:1000mm

   Features The flat bed has been quenched and grinded ,high rigidity Central lubrication is being used on ball screw and slide way,heat restoration is less ,accuracy is assured Electrical 4 position tool rest is position by precise chuck repeating accuracy is high Rapid cam clamping device is used on tailstock

Model	CKI-6136	CKI-6150
Max swing diameter over bed mm	390	500
Max swing diameter overy carriage mm	200	290
Max length of workpiece	550	1000
Width of guide rail	300	390
Model of chuck	D6/Φ200	D8/Φ250
Spindle rotation speed	3200RPM	45-1600RPM
Variable structure of spindle box	Vari	INVETER SPEED
Spindle motor	5.5kw	7.5kw
Spindle head and spindle taper	D-6	C-11/1:20
Diameter of spindle hose	φ58	φ82
Max moving speed of X axis	6	6
Max moving speed of Z axis	8	8
Diameter of sleeve	φ55	φ75
Travel of sleeve	120	150
Taper of tailstock sleeve	M4	M5
Positioning accuracy	0.01	0.01
Dimension	2150*1190*1640	2490*1420*1600
Net weight	1500	2300

    Standard accessories 1. Tai wan SYNTEC system  2.4 position turrent 3.Three jaw chuck 4.Tool and tool box   Optional accessories      1.Fanuc 0i-mate system or chinese GSK or KND system 2,Six position turrent 3,Hydraulic tailstock 4,Hydraulic chuck(taiwan or chinese)
