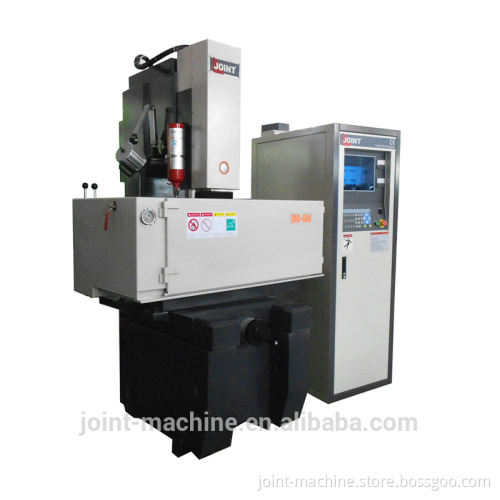

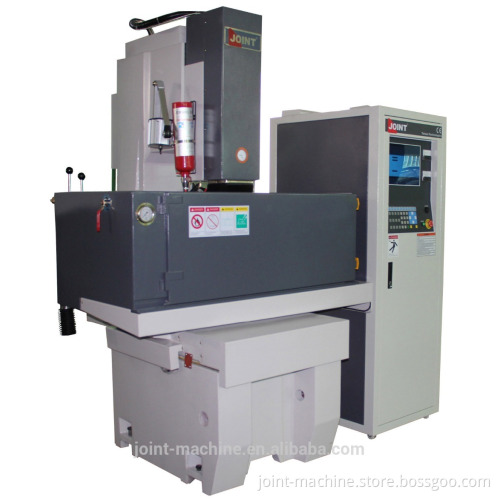

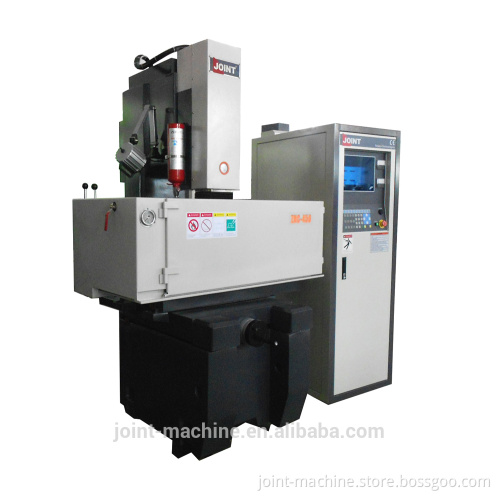

Stability and reliability quality for moulding EDM machine ZNC-450

Electric Discharge Machine ZNC450 Features: 1.Best quality cast,time aging; 2.Deep-hole processing without carbon accumulation; 3.Imported sealed ballscrew and electrode head; 4.Japan lineal way and servo motor; 5.Taiwan control system GTEK   Specification:Electric discharge machine ZNC450

Model			ZNC-320	ZNC-450 CNC-450
Size of oil container		mm	880×520×330	1100×710×450
Table size		mm	600×300	700×400
Table   travel	Longgitute(X)	mm	300	450
	Crossward(Y)	mm	200	350
	Vertical(Z)	mm	180	200
Electrode head		mm	180	280
Max.distance between   electrode head and working table		mm	420	480
Max.load of electrode head		Kg	100	120
Max.load of table		Kg	800	1200
Dimension(L*W*H)		mm	1300×1250×1200	2050×2530×2400
Net weight		Kg	1150	1500
Filter   container	Cube	L	250	400
	Net weight	Kg	—	150

  Accessories:  1.Standard accessories:    Magnet check    Fire extinguisher    Tool and toolbox    Operation manual   2.Optional accessories:    NC shaking head   After-sales services:  Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.    Photos: 1.Workshop: Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.   2.Research and Development team: We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.     3.Certificate and Honour: 1.8 Intellectual property rights and 5 the patents 2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field. 3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China. 4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”. 5.We have introduced ISO9001:2008 in 2009. 6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.     4.Accessories for EDM:
