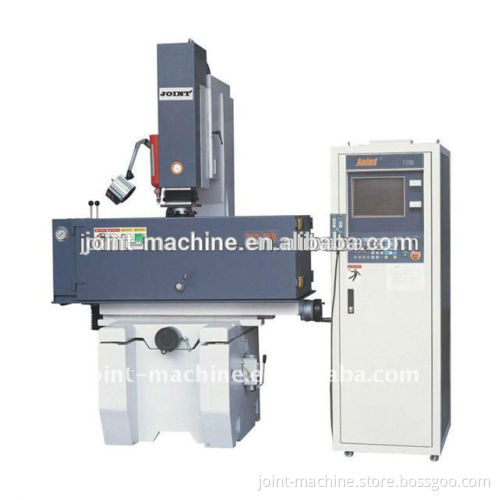

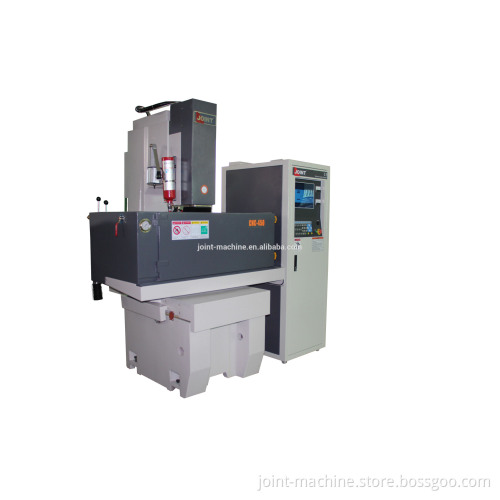

High quality and high cost-effective EDM machine CNC-450

 High quality and high cost-effective EDM machine CNC-450 Stability And Reliability Quality For Mould Processing Full size machine could meet with all requirements of mould processing Famous Taiwan brand controller,reliable and accuracy All keys are from Taiwan and Japanese top brands Features 1. Taiwan CTEK controller 2. Imported sealed ballscrew and guideway 3. Taiwan electric components 4. One piece machine body 5. Large torque servo motor with fast responding speed. 6. With Fire extiguisher 7. ZNC and CNC and Mirror type are available. 8. Double heads EDM are aslo available. 9. Best quality cast,time aging   Specification: EDM Machine CNC-450

Model	CNC-450
Size of oil container (mm)	1100*710*450
Table size (mm)	700*400
Table travel (mm)	450*350*200
Electrode head (mm)	280
Max.distance between electrode head and working table (mm)	480
Max.load of electrode head (kg)	120
Max.load of table (kg)	1200
Dimension(L*W*H) (mm)	2050*2530*2400
Net weight (kg)	1500
Filter container (Cube)	400 L
Filter container (Net weight)	150 kg

  Specifications of CNC Electric cabinet

Control mode & Axis No.	NC with close circuit/X, Y and Z axis control
Min.setting value (mm)	0.005
Max.setting value (mm)	9999.995
Coordination system	(INC),(ABS)
Screen	15"TFT
Control system	Industrial PC
Moving velocity of controller	0.005mm (Per Unit)*1, *5, *10
Procedure in store	0-999groups
Max.current for processing (A)	50     75     100
Input rated power (KVA)	5      6        10
Max.cutting processing speed (mm²/min)	360    560    700
Consumption of the electrode head (%)	<0.2
Best surface rough (μmpa)	0.25
Dimension (mm)	620*860*1850
Net weight (kg)	215

Accessories 1.working light 2.fire extinguisher 3.permanent magnet chuck   After-sale Service Warranty is a year. parts in the warranty would be free of charge due to its quality problem. Overseas service needs to be charged extra. Workshop Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.   Certificate and Honour 8 Intellectual property rights and 5 the patents The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field. From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China. In 2011,we have been granted as "National Grade HI-Tech Enterprise". We have introduced ISO9001:2008 in 2009. The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS. FAQ Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-15days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% in advance.and the rest payment should pay before delivery.   Q: How many years have your company established?
A: 21 years, our company built in 1995.
