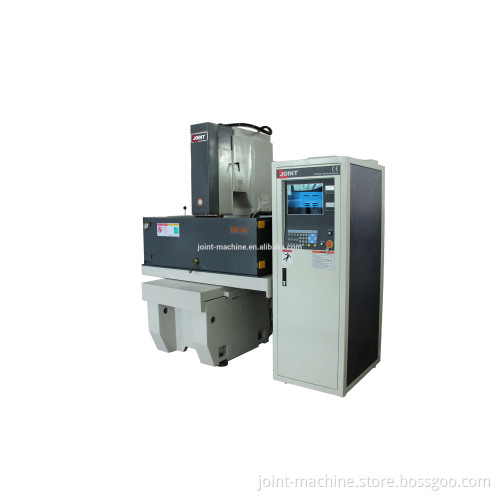

The most popular CNC EDM machine with die sinking CNC-540

The most popular CNC EDM machine with die sinking CNC-540 Features 1.Best quality cast,time aging; 2.Deep-hole processing without carbon accumulation; 3.Imported sealed ballscrew and electrode head; 4.Japan lineal way and servo motor; 5.Taiwan control system GTEK   Specification: CNC electric cabinet

Model	CNC MACHINE
Control mode & axis No.	NC with close circuit/X,Y and Z axis control
Min.setting value.	0.005mm
Max.setting value.	9999.995mm
Coordination system	(INC),(ABS)
Screen	15''TFT
Control system	Industrial PC
Moving velocity of controller	0.005mm (Per Unit)*1,*5,*10
Procedure in store	0-999groups
Max.current for processing	50   75   100 A
Input rated power	5     6      10 KVA
Max.cutting processing speed	360   560   700 mm²/min
Consumption of the electrode head	<0.2%
Best surface rough	0.25μmpa
Dimension	620*860*1850mm
Net weight	215Kg

  Specification of EDM machine CNC-540

Model	CNC-540
Size of oil container	1300*720*475mm
Table size	800*400mm
Table travel (Longitude)	500mm
Table travel (Crossward)	400mm
Table travel (Vertical)	200mm
Electrode head	380mm
Max.distance between electrode head and working	580mm
Max.load of electrode head	150Kg
Max.load of table	1500Kg
Dimension(L*W*H)	1640*1460*2140mm
Net weight	1740Kg
Filter container (Cube)	460L
Filter container (Net weight)	180Kg

  Accessories 1.Standard accessories: Magnet check Fire extinguisher Tool and toolbox Operation manual 2.Optional accessories: NC shaking head   After-sales services Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.  Workshop Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.   Certificate and Honour: 1.8 Intellectual property rights and 5 the patents 2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field. 3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China. 4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”. 5.We have introduced ISO9001:2008 in 2009. 6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.   Package   FAQ Q: Are you trading company or manufacturer ? A: We are factory.   Q: How long is your delivery time? A: Generally it is 5-15days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.   Q: What is your terms of payment ? A: 30% in advance.and the rest payment should pay before delivery.   Q: How many years have your company established? A: 21 years, our company built in 1995.
