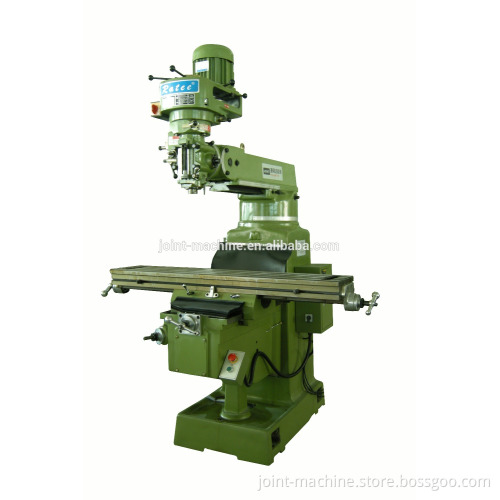

Joint brand High Precision Lower Price Vertical Milling Machine 4EA

Joint brand High Precision Lower Price Vertical Milling Machine 4EA Features 1.Taiwan original milling head,NSK P4 spindle bearing;
2.Twice precisely scraping;
3.Head tilt angle ±45°/±90°;
4.OEM MANUFACTURER; 5.For electric parts, mould and hole, slot and frame processing; 6.Twice precisely scraping Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm; 7.Spindle tolerance 0.002mm; 8.Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm.   Specification

Model	4EA
Table size	1370*280*90 mm
Travel (Longitude)	1000 mm
Travel (Cross ward)	370 mm
Travel (Vertical)	340 mm
Travel of spindle quill	127 mm
Max.Distance from the spindle nose to table	460 mm
Spindle (Rotation speed)	80-5440RPM/(16 grades)/60HZ
Spindle (Taper)	R8(NT30)
Spindle (Rated power)	3HP
Tilt Angle (Forward and Backward)	±45°
Tilt Angle (Left and Right)	±90°
Dimension	1500*1800*2200 mm
Net weight	1550 kg

  Accessories 1.Standard accessories Oil pump Working light Draw bar Way cover Operation manual Tool and toolbox 2.Optional accessories R8 collects Clamping kits 6" vise Coolant system DRO Power feed Elevating motor     After-sales services Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.     FAQ Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? A: Generally it is 5-15days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment ? A: 30% in advance.and the rest payment should pay before delivery.   Q: How many years have your company established? A: 20 years, our company built in 1995.
