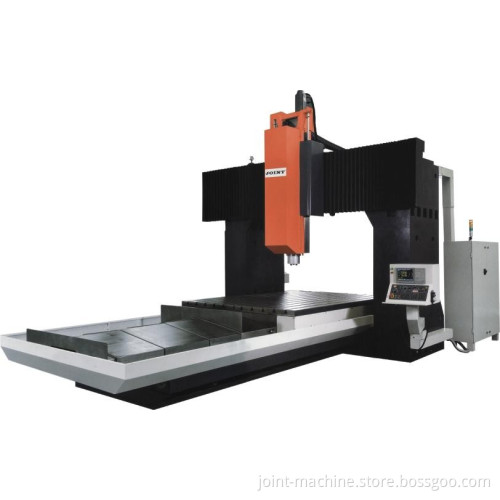

CE Standard / Taiwan quality / 3 axis CNC Gantry Type Machining Center BTMC-1502 For Sale with High Efficiency

Product Description CE Standard /Taiwan quality /3 axis CNC Gantry Type Machining Center BTMC-1502 For Sale with High Efficiency
◆Serie 13 and serie 15 have either hard way X axes and linear way Y axis or X&Y axis are both linear way. For the other series, X&Y axes are all heavy-load roller linear way. Z axis for all models is rectangular slide way. ◆High quality resin sand casted, gantry type frame structure, Z axis employs laminated slide way system, which suits high rigidity and high precision parts processing. ◆Equipped with Europe imported gear box, rack and coupling (French brand gear driving box, Swiss brand rack and German brand coupling), Japanese / German Brand linear guide way and spindle bearing adopt. Lead screw, block nut, pulley, spindle, hydraulic balance system are from Taiwan the top brand's top quality accessories, which ensure high precision, high quality and high stability. ◆Cooperated with Spainish brand Nicholas's top class gantry type machining center in technology for many years. Continuously optimizes the mechanic features of gantry type machining center. ◆Adopts temperature control technique (our patent) to ensure stability and accuracy of long-hour processing. ◆Adopts modular design, which made many different type of optimized model, that satisfys the different customer processing needs and fast delivery requirements.

SPECIFICATIONS
Model		BTMC-1502
Table size	mm	2000×1200
Travel (Longitude)	mm	2000
Travel (Crossward)	mm	1650（effective 1500）
Travel (Vertical)	mm	800
Gantry width	mm	1650
Distance between spindle and table	mm	115-915
Spindle (Rotation speed)	rpm	6000
Spindle (Taper)		BT50
Spindle (Motor)	kw	22
Rapid feed (Longitude)	m/min	12
Rapid feed (Crossward)	m/min	12
Rapid feed (Vertical)	m/min	12
Cutting feed	m/min	8
Positioning accuracy	mm	0.01
Min.set moving unit	mm	0.001
Dimension (L*W*H)	mm	7200×3700×4300
Net weight	kg	24000
Max.load of table	kg	3000
Other model with same type/ X axis travel	mm	1503/3000 1504/4000

Accessories Standard Accessories ◆ Spindle oil cooler ◆ Heat exchanger ◆ Auto conveyor ◆ Full enclosed cover ◆ Auto lubrication system ◆ Pneumatic system
◆ RS232 Interface

◆ Operation unit
◆ Warming light
◆ Working light ◆ Tool and tool box ◆ Spindle encoder position system ◆ Three Inner encoder feedback system ◆ Fanuc / Mitsubishi Controller system
Optional Accessories ◆ Other Controllers ◆ 4 axis rotary table ◆ Through spindle water coolant ◆ Ring spary spindle ◆ ZF gear box ◆ 90 degree angle milling head
After-sales Services Warranty is one year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
