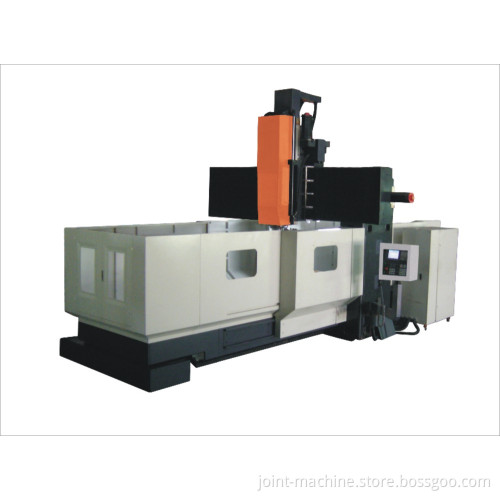

CNC double column machining center for sale BTMC-2202

CNC double column machining center for sale BTMC-2202   Specifications 1, Fit for car mould ,engine mould and large screen and other large precise part processing .   2.Dragon frame type machine body, gear head is optional   3.Super high rigid pin roller linear way, embodies the heavy cut rigidity and rapid feed feature   4.Module design and serials products could meet with all kinds of requirement,

Model	BTMC-2202
Table size	3000*1800 mm
Longitude X travel	3000 mm
Crossward Y travel	2200 mm
Vertical Z travel	1000 mm
Distance between spindle and table	250-1250 mm
Spindle rotation speed	6000 rpm
Spindle Taper	BT50
Spindle Motor	22 kw
Rapid feed  (X)	12 m/min
Rapid feed (Y)	12 m/min
Rapid feed (Z)	12 m/min
Cutting feed	8 m/min
Positioning accuracy	0.01 mm
Min set moving unit	0.001 mm
Dimension	8700*4300*5100 mm
Net weight	36500 kg
Max load of table	6000 kg
X axis travel of the other modles	2202/2000 mm

    1.Standard accessoires:   Control system   Electronic hand wheel   Cover   Auto lubrication of slide way   Coolant system   Operation manual of machine   Operation manual of control system   Cutting fluid and filter system   Stainless steel covers of slide way   Alarming light   Hammer balance   Tool and toolbox   2.Optional accessories:   Milling chuck and tool unlock   Arm type or umbrella type tool magazine   Auto chip conveyor   Oil coolant   The fourth axis NC dividing head or rotary table   Heat exchanger           After-sales service :   warranty is a year , parts are free of charge to be offered during this period ,oversea service need to charged extra in and out of warranty     Workshop:   Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.       Certificate and Honour:
