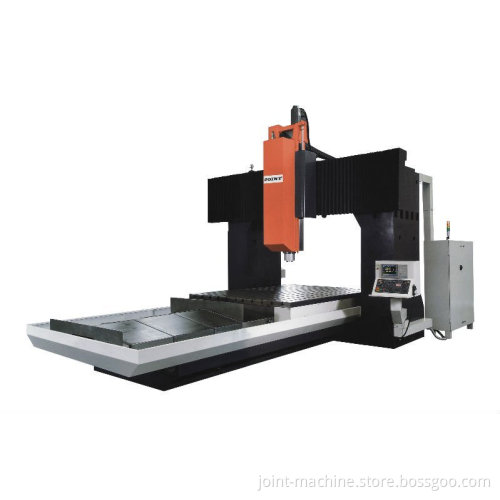

Linear way and gear head CNC gantry type machine center BTMC-1302

Linear way and gear head CNC gantry type machine center BTMC-1302   Specifications   Fanuc /Mitsubishi/Siemens Control system
BT40 Spindle taper
7.5kw Spindle motor
12000rpm Spindle rotation speed    1, Fit for car mould ,engine mould and large screen and other large precise part processing . 2.Dragon frame type machine body, gear head is optional 3.Super high rigid pin roller linear way, embodies the heavy cut rigidity and rapid feed feature 4.Module design and serials products could meet with all kinds of requirement,

Model	BTMC-1302	BTMC-1502	BTMC-2203	BTMC-2204	BTMC-2503	BTMC-2505
Table size	2000*1000	2100*1200	3000*1800	4000*1800	3000*2000	5000*2300
Longitude X travel	2200	2000	3000	4000	3000	5000
Crossward Y travel	1300	1650	2200	2200	2700	2700
Vertical Z travel	800	800	1000	1000	1000	1000
Distance between spindle and table	120-920	175*975	250-1250	250-1250	280-1280	260-1260
Spindle rotation speed	6000	6000	6000	6000	6000	6000
Spindle Taper	BT50	BT50	BT50	BT50	BT50	BT50
Spindle Motor	15/18.5	22	22	22	30	30
Rapid feed  (X)	12	12	12	12	12	12
Rapid feed (Y)	15	12	12	12	12	12
Rapid feed (Z)	15	12	12	12	12	12
Cutting feed	8	8	8	8	8	8
Positioning accuracy	0.01	0.01	0.01	0.01	0.01	0.01
Min set moving unit	0.001	0.001	0.001	0.001	0.001	0.001
Dimension	6500*3000*4000	7200*3700*4300	8700*4300*5100	10600*4300*5100	9200*5000*4800	13000*5000*4800
Net weight	15000	24000	36500	41500	43500	57000
Max load of table	3000	3000	6000	10000	10000	15000
X axis travel of the other modles	1325/2500 1303/3000 1335/3500	1503/3000 1504/4000	2202/2000	2205/5000 2206/6000	2504/4000	2506/6000

    Accessories:   1.Standard accessoires:   Control system   Electronic hand wheel   Cover   Auto lubrication of slide way   Coolant system   Operation manual of machine   Operation manual of control system   Cutting fluid and filter system   Stainless steel covers of slide way   Alarming light   Hammer balance   Tool and toolbox   2.Optional accessories:   Milling chuck and tool unlock   Arm type or umbrella type tool magazine   Auto chip conveyor   Oil coolant   The fourth axis NC dividing head or rotary table   Heat exchanger
