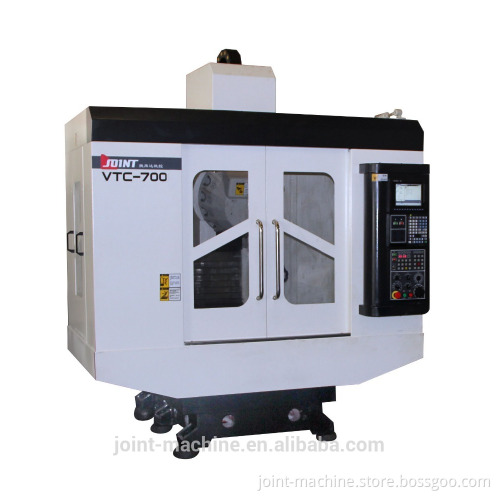

Excellent Dynamic Accuracy Vetical CNC Drilling and Tapping Machine Center VTC-700

Product Description  Excellent Dynamic Accuracy Vetical CNC Drilling and Tapping Machine Center VTC-700  Product Features  ♦X,Y,Z axes are linear guide way.3 axes standard rapid feed speed is 48 meters/min(optional up to 60 meters/min). ♦ High-rigidity machine body structure design.In addition to drilling feature,also capable og low-intensity milling and cutting aluminum parts. ♦ Focus on processing small-sized multiple hole precise parts,and have advantages on high speed operation,fast and high precision small hole machinning and fast too changing. ♦ We accumulate and consistently optimize customer's application data,and provide customer our technical supports on application to ensure better performance.

Model		VTC700	VTC700H
Table Size                                                     mm		800*400	800*400
	Longitude(X)                mm	700	700
Travel	Crossward(Y)               mm	400	400
	Vertical (Z)                    mm	300	300
Distance between spindle and Table        mm		155-455	155-455
Distance between spindle and Column		450	450
	Rotation Speed           rpm	12000	15000/20000/24000
Spindle	Taper	BT30	BT30
	Motor                            kw	3.7	2.2(FANUC)/3.7(MITSUBISHI)
	Longitude(X)            m/min	48	48
Rapid Feed	Crossward(Y)           m/min	48	48
	Vertical (Z)                m/min	48	48
Cutting Feed                                             m/min		12	12
Positioning Accuracy                                   mm		0.005	0.00
Min Enactment Move Unit                           mm		0.001	0.001
Dimension (L*W*H)                                       mm		2000*2315*2375mm	2000*2315*2375mm
Net Weight                                                     kg		3000kg	2800kg
Max Loaded of Table                                    kg		250kg	300kg

Our Services Special Advantage:    We provide more fanctional and customized products.    We provide CNC product application support.    We provide integrated solutions for auto production line.    We provide integrated design of molding and parts processing production line.   After-sales Service:      Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty. Packaging & Shipping Packing Details  : Packing, solid bicycle saddle, 50pcs/carton. Delivery Details : 3-30 days after order of Solid bicycle tire tubes. Company Information      SHENZHEN Joint Industry Co., Ltd specialized in R&D and manufacturing mold processing and machinery parts processing equipments.We developed high quality and high-tech research,development,manufacturing,service team and management system,and expanded products to more than 10 series from milling machines, to machine centers.    With the exceptional quality products and distinctire brand reputation,our products are sold to more than 40 developed cities all over China,and also to more than 20 countries all over the world across Asia,Europe and America.   Our development team We have a group of development team that they have professional theory profound skills, technical specialization, rich experience in the industry of the first-class technical research.    Our production workshop   Our company independent planning and construction of modern vertical machine center production line ,CNC milling machine production line ,Dragon frame CNC machine production line , electric discharge machine production line, milling machine production line, grinder machine production line, precise head assembly workshop etc.   Our certificate of honor There are 8 Intellectual property rights,5 the patent In 2008, Our own brand”JOINT” has been the top quality machine’s signal in domestic sales JOINT also has been recognized as”Guangdong Famous Brand”  In 2008, Milling machine was recognized as” TOP 10 Famous Brand of Milling Machine “ in China In 2011,our company has been recognized as” national grade HI-Tech Enterprise”. The company set up a ISO9001:2000 quality guarantee system our product through “the country machine quality supervision and inspection center “certification testing
