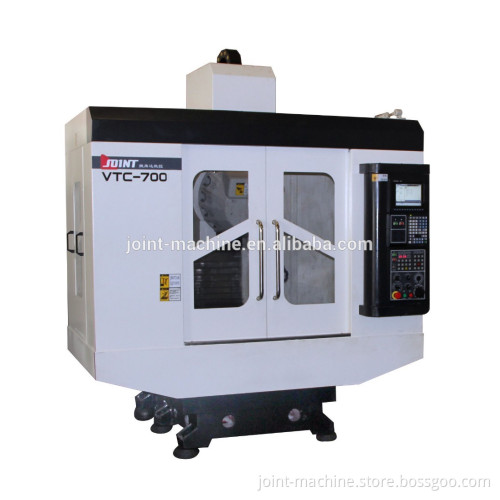

Fast and high precision small hole machineing CNC tapping and drilling machine center VTC700

Fast and high precision small hole machineing CNC tapping and drilling machine center VTC700 Features 1. X, Y, Z axes are linear guide ways. 3 axes standard rapid feed speed is 48 meters/min (optional up to 60 meters/min) 2. High-rigidity machine body structure design. In addition to drilling feature, also capable of low-intensity milling and cutting aluminum parts. 3. We accumulate and consistently optimize customer's application data, and provide customer our technical supports on application to ensure better performance.   Specification

Model	VTC700
Table size	800*400mm
Travel (Longitude)	700mm
Travel (Crossward)	400mm
Travel (Vertical)	300mm
Distance between spindle and table	155-455mm
Distance between spindle and column	450mm
Spindle (Rotation speed)	12000rpm
Spindle (Taper)	BT30
Spindle (Motor)	3.7kw
ATC type	Clamp arm ATC with 16 tools (21 tools optional)
Max.length/ max weight of tool	200mm/3kg
Rapid feed (Longitude)	48m/min
Rapid feed (Crossward)	48m/min
Rapid feed (Vertical)	48m/min
Max cutting feed	12m/min
Positioning accuracy	0.005mm
Min.set moving unit	0.001mm
Dimension(L*W*H)	2000*2315*2375mm
Net weight	3000kg
Max.load of table	250kg

  Accessories 1.Standard accessoires: Control system Electronic hand wheel Cover Auto lubrication of slide way Coolant system Operation manual of machine Operation manual of control system Cutting fluid and filter system Stainless steel covers of slide way Alarming light Hammer balance Tool and toolbox   2.Optional accessories: Milling chuck and tool unlock Arm type or umbrella type tool magazine Auto chip conveyor Oil coolant The fourth axis NC dividing head or rotary table Heat exchanger After-sales services: Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.     Photos Workshop Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.             FAQ Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-15days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% in advance.and the rest payment should pay before delivery.
Q: How many years have your company established?
A: 21 years, our company built in 1995.
