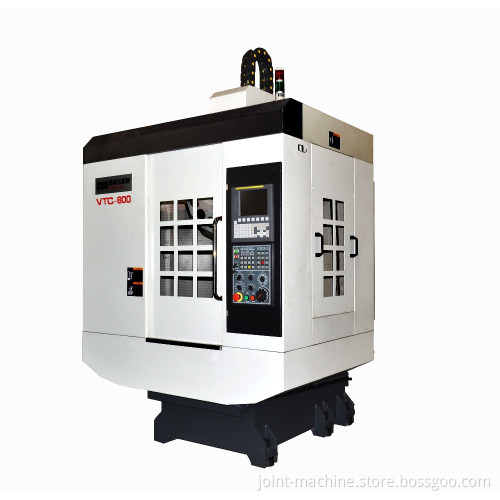

Joint brand the best choice cnc drilling machine VTC-600

Joint brand the best choice cnc drilling machine VTC-600 Product Features X, Y, Z axes are linear guide ways. 3 axes standard rapid feed speed is 48 meters/min (optional up to 60 meters/min). High-rigidity machine body structure design. In additiion to drilling feature, also capable of low-intensity milling and cutting aluminum parts. Specification

Model	VTC-600
Table size	700×400 mm
Travel (Longitude)	600 mm
Travel (Crossward)	400 mm
Travel (Vertical)	300 mm
Distance between spindle and table	155-455 mm
Distance between spindle and column	450
Spindle (Rotation speed)	12000 rpm
Spindle (Taper)	BT30
Spindle (Motor)	3.7 kw
ATC type	Clamp arm ATC with 16 tools (21 tools optional)
Max.length/ max weight of tool	200 mm/ 3 kg
Rapid feed (Longitude)	48 m/min
Rapid feed (Crossward)	48 m/min
Rapid feed (Vertical)	48 m/min
Max cutting feed	12 m/min
Positioning accuracy	0.005 mm
Min.set moving unit	0.001 mm
Dimension(L*W*H)	1850×2315×2375 mm
Net weight	2950 kg
Max.load of table	250 kg
