Hot selling High precision Simple operation Lower price CNC Deep Hole Drilling Machine TL-800 with Water trasport hole

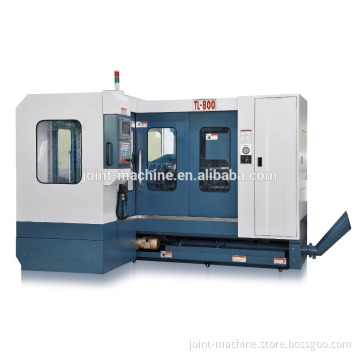

Hot selling High precision Simple operation Lower price CNC Deep Hole Drilling Machine TL-800 with Water trasport hole                                Features                               Good fuselage steel,high machining accuracy,small occupation area,simple operation Particularly suitable for small and medium-sized mold thimble hole and water transpor hole   Specification:CNC Deep Hole Drilling Machine TL-800

Model	TL-800
Number of drill spindle	Uniaxial
Inner diameter of drilling	2.5-30 mm
Directional maximum depth of drilling	800 mm
Size of working table	900*700 mm
Displacement of X-axis	800 mm
Displacement of Y-axis	600 mm
Displacement of Z-axis	900 mm
Drilling cutting feed rate	10-250 mm/min
Maximum rotating speed of principal axis	7000 rpm
Principal axis motor	AC Servo 7.5 KW
Moving the motor from right to left on work table (X)	AC Servo 2.0 KW
Moving the motor from up to down on principal axis (Y)	AC Servo 2.0 KW
Moving the motor from front to back on principal axis (Z)	AC Servo 1.5 KW
Pressure of cutting pressure pump	80 kgf/cm²
Oil mass of oil pressure pump	6-60 litre/min
Capacity of cutting oil tank	600 litre
Load capacity of working table	5000 kg
Machine net weight	6500 kg
Machine power	23 KW
Machine size (L*W*H)	4700*3300*2200 mm

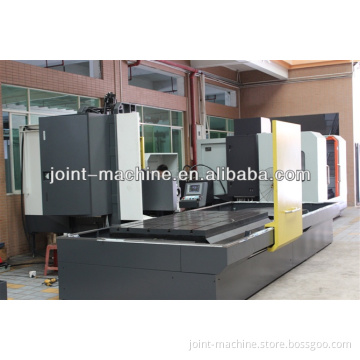

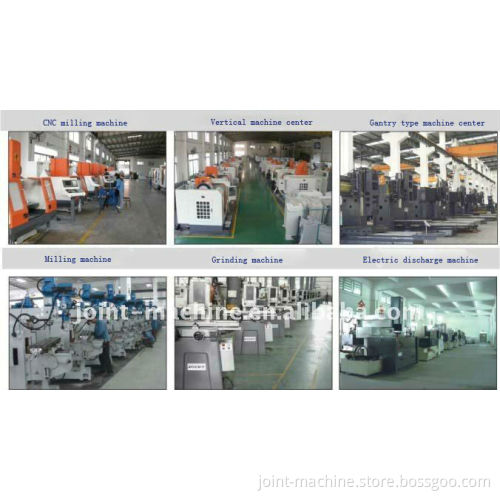

                                Accessories                           1.Machinery main configuration Linear guideway Spindle Ballscrew Bearing Axis servo drive 2.Machinery optional accessories FANUC operating system Mitsubishi operating system Grinding machine Strong deoiling machine Precision guide sleeve Cutting oil/Lubricating grease Gun drill                          After-sales Service:                            Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty.                                   Photo                                      Our development team     Our production workshop      Our certificate of honor There are 8 Intellectual property rights,5 the patent. In 2008, Our own brand "JOINT" has been the top quality machine’s signal in domestic sales JOINT also has been recognized as "Guangdong Famous Brand". In 2008, Milling machine was recognized as "TOP 10 Famous Brand of Milling Machine" in China. In 2011,our company has been recognized as "national grade HI-Tech Enterprise". The company set up a ISO9001:2000 quality guarantee system. Our product through "the country machine quality supervision and inspection center" certification testing.                                       FAQ                                  Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? A: Generally it is 5-15days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment ? A: 30% in advance.and the rest payment should pay before delivery.   Q: How many years have your company established? A: 20 years, our company built in 1995.
