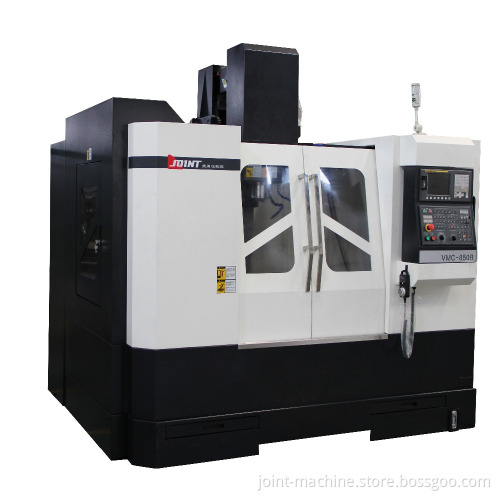

vertical machine center cnc

Product Description vertical machine center cnc Product Detail

Precision	High Precision
Table size	1050*500mm
COLOR	Optional
Cutting feed	8m/min
Max.load of table	600kg
Travel	800*500*550mm
Control system	MITSUBISHI / FANUC
Spindle taper	BT40
Rapid feed	15/15/12m/min
Spindle Speed	8000/10000/12000rpm
Product Keywords	vertical machine center cnc,cnc milling machine body

Features: 1. X,Y,Z axes slide way are quenched and fixed to mould rail;

2.High-rigidity machine body ensure cutting requirements can be met;

3.Coupling,spindle bearing,spindle,ball screw,linear slide way,tool magazine,unclamping cylinder and other key parts are all imported from Germany,Japan and Taiwan top brands to high quality and high precision;

4.Complete product model,from 540 to 1890,suitable for various small to medium mould processing;

5.Modular configurations,can provide customized options to meet different customers processing needs:Spindle water coolant,Gear type spindle-case,12000-15000 rpm/min direct connection spindle;

6.This machine center focuses on mould processing ,it also suits mechanic parts processing;

7.In this serie models above 1580 employ temperature control technique (our patent) to ensure the stability and accuracy for long-hour processing. After sale services Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty.
