Joint Brand High Precision in Low Price Milling Machine B600SC with Taiwan Quality Milling Head

Joint Brand High Precision in Low Price Milling Machine B600SC with Taiwan Quality Milling Head Specifications 1.Taiwan original milling head,NSK P4 spindle bearing;
2.Twice precisely scraping;
3.OEM Manufacturer;
4.CE.

  Features: 1.Taiwan original milling head,NSK P4 spindle bearing;
2.Twice precisely scraping;
3.Head tilt angle 0°/±90°;
4.OEM MANUFACTURER; 5.For electric parts, mould and hole, slot and frame processing; 6.Twice precisely scraping Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm; 7.Spindle tolerance 0.002mm; 8.Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm.   Specification:Milling machine B600SC

Model	B600SC
Table size	1370*405mm
Travel (Longitude)	1000mm
Travel (Cross ward)	460mm
Travel (Vertical)	520mm
Travel of spindle quill	140mm
Max.Distance from the spindle nose to table	640mm
Spindle (Rotation speed)	58-3000(10 speed)/50HZ
Spindle (Taper)	NT40
Spindle (Rated power)	7.5HP
Tilt Angle (Forward and Backward)	0°
Tilt Angle (Left and Right)	±90°
Dimension	2000*2230*2150mm
Net weight	2900kg

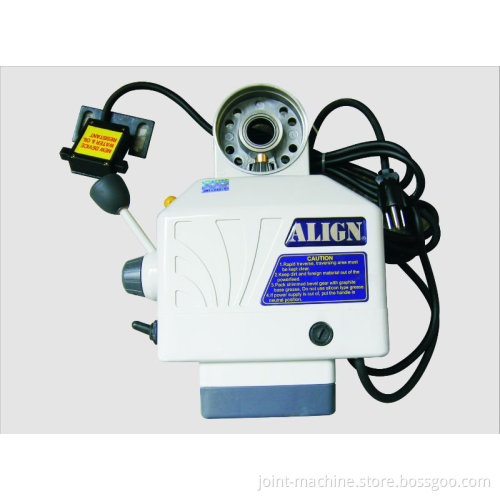

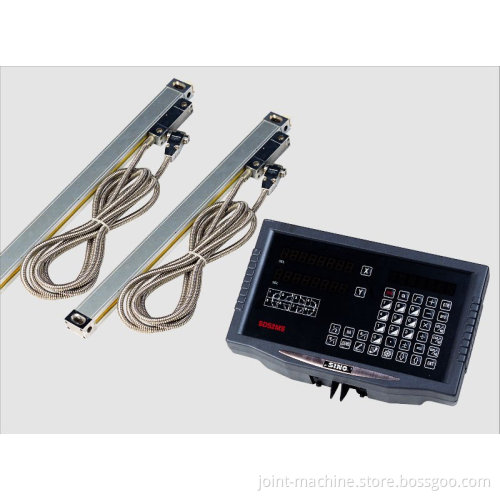

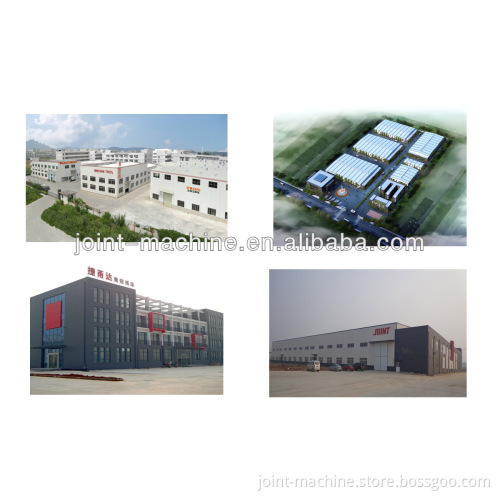

 X axis is Dovetail way,Y/Z axis is Square way.   Accessories: 1.Standard accessories: Oil pump Working light Draw bar Way cover Operation manual Tool and toolbox 2.Optional accessories: NT40 Milling chuck Clamping kits 6" vise Coolant system DRO Power feed Elevating motor   After-sales services: Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.   Photos:     1.Workshop: Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.     2.Research and Development team: We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.   3.Certificate and Honour: 1.8 Intellectual property rights and 5 the patents 2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field. 3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China. 4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”. 5.We have introduced ISO9001:2008 in 2009. 6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.    4.Production line:        FAQ Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? A: Generally it is 5-15days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment ? A: 30% in advance.and the rest payment should pay before delivery.   Q: How many years have your company established? A: 20 years, our company built in 1995.
