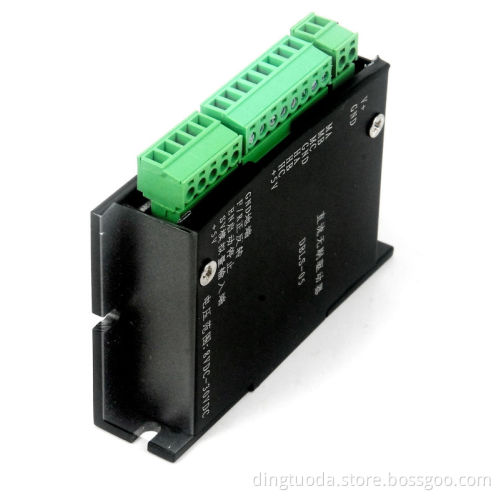

8-24V high performance brushless dc motor driver

characteristics

symbol

Value

Unit

Rated Voltage

U

24

VDC

Under Voltage

U

8

VDC

Over Voltage

U

35

VDC

Continuous Current

Idauer

4.0

A

Peak Current

Imax

8.0

A

Variable Speed Range

0~40000

RPM

Efficiency

90

%

Power for hall sensor

VCC

5.0

VDC

Alarm

I-Alarm Hall-Alarm

Vmax-Alarm Vmin-Alarm

Stall-Alarm

Run/stop(EN)

Logic level

Low -10~0.5V High 3~30V

V

DIR

Logic level

Low -10~0.5V High 3~30V

V

BAK

Logic level

Low -10~0.5V High 3~30V

V

PG

Logic level

Low -10~0.5V High 3~30V

V

Hall sensor input

Logic level

0~5

V

Temperature protection

Common style

<-10 or >70

°C

Industry style

<-40~>85

°C

Operating temperature

Common style

-10~+70

°C

Industry style

-40~+85

°C

Dimensions

86*52.5*26.5

MM

Weight

0.6

kg
