20G 40G OEM price industrial ozone generator parts with oxygen source for hospitals waste water treatment

20G 40G OEM price industrial ozone generator parts with oxygen source for hospitals waste water treatment

Get Latest Price

Delivery Time:: 1 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

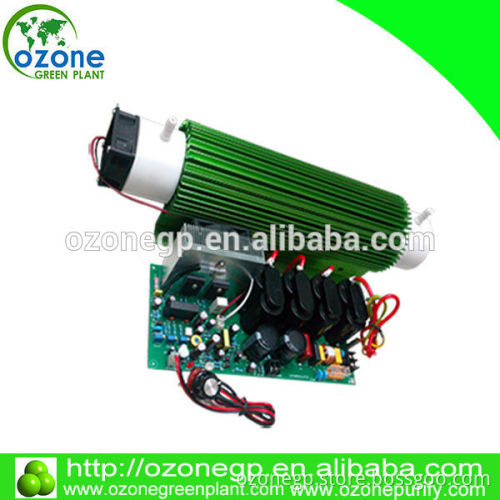

20G 40G OEM price industrial ozone generator parts with oxygen source for hospitals waste water treatment Technology: It uses Corona Discharge technology to produce ozone. Material of ozone tube 1. high pure silica quartz external electrode, 2. SS 316L of internal electrode 3. teflon connectors, 4. corrosion-resistant high purity fluorine rubber ring seal, 5. air cooling aluminum radiator etc. Features of adjustable electric board working voltage: 110V/60HZ (95~135V ) ; 220V/50HZ (180~250V) output power is adjustable ozone output is adjustable over heated, over-current, over-voltage protective measures corrosion-resistant coating Features of enclosure electric card working voltage: 220V/50HZ output power not adjustable ozone output not adjustable moisture resistance

Our Advantages:
1.Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration is around 70~106 mg/L, which is much higher than conventional products.

2.Low working voltage corona discharge ozone generator
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

4.Small in size ozone generator unit.
It is 1/4 smaller than similar products with same capacity.

5.Easy to maintain and install ozone tube with its power supply (ozone generator spare parts)

Function of ozone:
1. Aquaculture, Aquarium, Fish farming Water treatment
2. Swimming pools Water treatment
3. Sewage water treatment
4. Various Water Disinfection& sterilization

5. Air purification and sterilization

6. Food disinfection

Specifications

Item	Unit	OGP-BC
Item	Unit	20GA	20GAT	40GA	40GAT
Oxygen flow rate	LPM	3.5~4	3~4	5~10	5~10
Ozone concentration	Mg/L	106~94	104~88.7	101~72	101~82
Ozone output	G/Hr	18~22.6	18.7~21.3	30~43.2	30~49.2
Power	KW	0.22~0.225	0.18~0.2	0.28~0.4	0.28~0.4
Cooling method	/	air cooling	Air and water cooling	air cooling	Air and water cooling
Air inlet&outlet	mm	ID6
O3 output adjustable range	%	20~100
Dew point	℃	45
Working voltage	V/Hz	110V 60HZ /220V 50HZ
Ozone tube size	mm	288 * 108 * 135	255 * 108 * 135	443 * 108 * 135	415 * 108 * 135
Power supply size	mm	198 * 120* 92
Ozone tube weight	Kg	3.3	3.2	5.7	5.3
Power supply weight	Kg	1.3	1.3	1.3	1.3
