6G 8G 10G Air cooling ozone tube / quartz tube ozone / ozone generator ceramic plate for medical ozone generator

6G 8G 10G Air cooling ozone tube / quartz tube ozone / ozone generator ceramic plate for medical ozone generator

Get Latest Price

Delivery Time:: 1 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

6G 8G 10G Air cooling ozone tube / quartz tube ozone / ozone generator ceramic plate for medical ozone generator

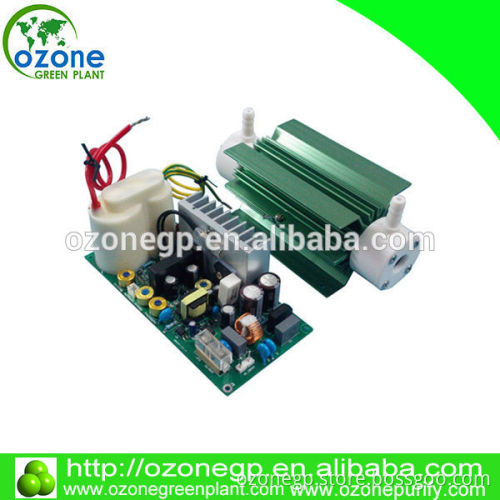

Quartz Ozone Generator Tube 8G/hr,Adjustable Ozonator for Air and Water Purifier Technology: It uses Corona Discharge technology to produce ozone. Material of ozone tube 1. high pure silica quartz external electrode, 2. SS 316L of internal electrode 3. teflon connectors, 4. corrosion-resistant high purity fluorine rubber ring seal, 5. air cooling aluminum radiator etc. Features of adjustable electric board working voltage: 110V/60HZ (95~135V ) ; 220V/50HZ (180~250V) output power is adjustable ozone output is adjustable over heated, over-current, over-voltage protective measures corrosion-resistant coating Features of enclosure electric card working voltage: 220V/50HZ output power not adjustable ozone output not adjustable moisture resistance

Our Advantages:
1.Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration is around 26~100 mg/L, which is much higher than conventional products.

2.Low working voltage corona discharge ozone generator
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

4.Small in size ozone generator unit.
It is 1/4 smaller than similar products with same capacity.

5.Easy to maintain and install ozone tube with its power supply (ozone generator spare parts)

Function of ozone:
1. Aquaculture, Aquarium, Fish farming Water treatment
2. Swimming pools Water treatment
3. Sewage water treatment
4. Various Water Disinfection& sterilization

5. Air purification and sterilization

6. Food disinfection

Specifications

Item	Unit	OGP-BC
Item	Unit	6GM	6GA	8GM	8GA	10GM	10GA
Oxygen feed flow rate	LPM	1~5		1~5		1~5
Ozone concentration	Mg/L	86.5~26.1		92.4~35.2		102~40.5
Ozone output	G/Hr	5.19~7.8		5.54~10.6		6.8~12.2
Power	Kw	0.07		0.08		0.098
Cooling method	/	Air cooling for internal and external electrode
Air inlet&outlet	mm	ID6
O3 output adjustable range	%	/	20-100	/	20-100	/	20-100
Working voltage	V/Hz	220V/50HZ	110V 60HZ /220V 50HZ	220V/50HZ	110V 60HZ /220V 50HZ	220V/50HZ	110V 60HZ /220V 50HZ
Ozone tube size	mm	*1817782*		*2217782*		*2717782*
Power supply size	mm	*1626842*	*1688075*	*1626842*	*1688075*	*1626842*	*1688075*
Ozone tube weight	Kg	0.73	0.73	0.95	0.95	1.15	1.15
Power supply weight	Kg	0.48	0.51	0.48	0.51	0.48	0.51
