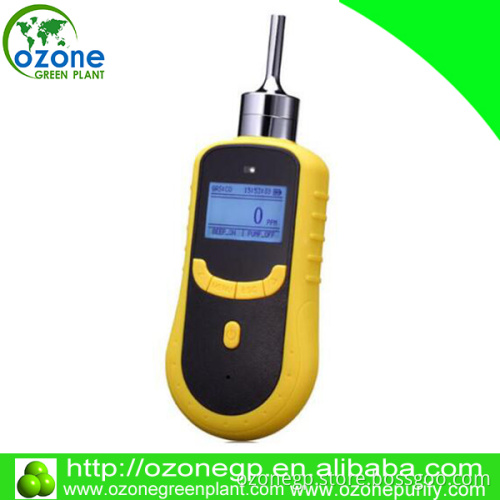

High precision accuracy of 0 ~ 100 PPM ozone air meter / ozone monitor in air

Gas Detected

O3

Detection principle

 According to electro-chemical principle

Sampling Method

pumping style,flow 1L/min,there are 10 grears to adjust the suction of pump

Measure Range

0-1ppm,0-5ppm,0-10ppm,0-20ppm,0-50ppm,0-100ppm,0-200ppm,0-500ppm,0-1000ppm for option

Resolution

0.001ppm(0-1ppm),0.01ppm(0-100ppm),0.1ppm(0-200ppm,0-500ppm),1ppm(0-1000ppm)

Precision

2%FS

Signal Output

USB high speed data transmission,Downloadable print data (optional)

Response Time

≤10S

Recovery Time

≤10S

Repeatability

≤±1%

Linearity error

≤±1%

Zero shift

≤±1%(F.S/year)

Display

LCD dot matrix display technology

Operating language

Chinese , English

Alarm mode

Sound, light, vibration

Temperature

-40℃~70℃

Humidity

0-95%RH

Explosion-Proof

ExiaⅡCT4

Degree of protection

IP66

Dimensions

205*75*32mm

Weight

300g
