The latest factory ozone monitoring air ozone generator protable ozone analyzer

The latest factory ozone monitoring air ozone generator protable ozone analyzer

Get Latest Price

Delivery Time:: 10 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

The latest factory ozone monitoring air ozone generator protable ozone analyzer General specification: Measurement method:UV light double optical receiver Light source system:German long-life ultraviolet lamp (253.7 nm wavelength); Detection range:0-200 g/m3 ; Display resolution:0.01 g/m3; Input gas flow:1.0L±0.2L/min; Input pressure:<0.1MPa; Zero shift:<±0.1%.FS(MAX:±0.2 g/m3) Sampling port diameter:Φ6(6mm*4mm) The accuracy of detection:±3% Communication mode:RS-485; Output mode:4-20mA,linearity; Power:AC 110-220V; Size:155*78*240mm; Hole size:145*68; Remaks:1mg/L=1g/m3=467PPM Warranty:24 months

High precision OGP-UV2200C Ozone Detector for ozone generator

Measurement method:UV light double optical receiver with high precision measurement; Light source system:German long-life ultraviolet lamp (253.7 nm wavelength); Detection range:0-200 g/m3 (extensible 0~350mg/L); Display resolution:0.1 g/m3; Input gas flow:1.2L?.2L/min; Input pressure:<0.1MPa; Zero shift:<?.2%.FS ; Responsive time:<1S Sampling port diameter:Φ6(6mm*4mm) The accuracy of detection:?% Communication mode:RS-485; Output mode:4-20mA,linearity; Power:AC 220V; Size:330*230*160mm; Weight: 6kg Remaks:1mg/L=1g/m3=467PPM OGP-O3SL Portable Ozone Analyzer for air space

Gas Detected	O3
Detection principle	According to electro-chemical principle
Sampling Method	pumping style,flow 1L/min,there are 10 grears to adjust the suction of pump
Measure Range	0-1ppm,0-5ppm,0-10ppm,0-20ppm,0-50ppm,0-100ppm,0-200ppm,0-500ppm,0-1000ppm for option
Resolution	0.001ppm(0-1ppm),0.01ppm(0-100ppm),0.1ppm(0-200ppm,0-500ppm),1ppm(0-1000ppm)
Precision	2%FS
Signal Output	USB high speed data transmission,Downloadable print data (optional)
Response Time	≤10S	Recovery Time	≤10S
Repeatability	≤±1%	Linearity error	≤±1%
Zero shift	≤±1%(F.S/year)	Display	LCD dot matrix display technology
Operating language	Chinese , English	Alarm mode	Sound, light, vibration
Temperature	-40℃~70℃	Humidity	0-95%RH
Explosion-Proof	ExiaⅡCT4	Degree of protection	IP66
Dimensions	2057532mm	Weight	300g

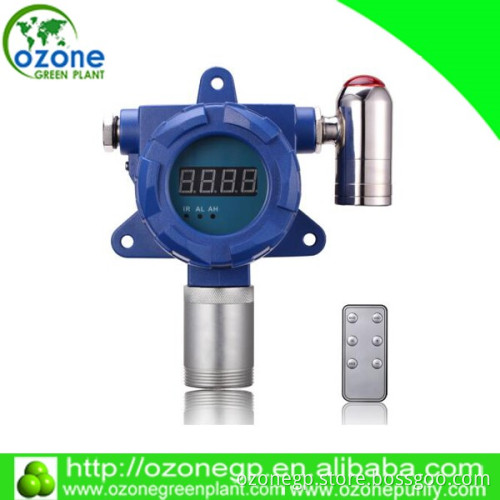

OGP-SOL Portable Ozone Analyzer for air space

Specification

Gas Detected	(O3)
Detection principle	Electro-chemical principle
Sampling Method	Wall mounted, pipeline, circulation type (related to monitor the environment)
Measure Range	0-1ppm,0-5ppm,0-10ppm,0-20ppm,0-50ppm,0-100ppm,0-200ppm,0-500ppm,0-1000ppm(range for option,not listed range can be customized)
Resolution	0.001ppm,0.01ppm,0.1ppm,1ppm(The resolution is associated with the selected range)
Precision	2%FS
Output signal	4-20MA,0-5V,RS485,RS232,,Timer,wireless digital(for option)
Response Time	≤10S	Recovery Time	≤10S
Repeatability	≤±1%	Linearity error	≤±1%
Zero shift	≤±1%(F.S/)	Display	High brightness digital tube displa
Connection mode	G1/2G1/2 explosion-proof hose	Thread size	M45*2mm
Temperature	-40℃~70℃	Humidity	0-95%RH
Explosion-Proof	Ex dⅡCT6	Degree of protection	IP65
Power	12-36VDC	Operating time	0~24 hours per day
Dimensions	180×150×90mm	Weight	≤1.6kg
