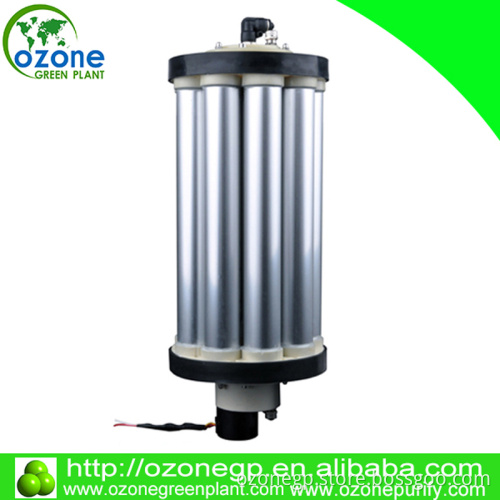

3L-20LPM 12 tower PSA pure oxygen generation equipment parts

 3L-20LPM 12 tower PSA pure oxygen generation equipment parts   OGP-OX series oxygen generators use the characteristic of special molecular sieve to separate the oxygen from the air and remove harmful substance for high purity industrial oxygen product by thetechnology of pressure swing adsorption(PSA).         Feature: 1.Patented products OGP-OX series molecular sieve is an air separation plant which has already obtained domestic patent.   2.Rational construction Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1LPM to 160LPM, even higher.   3.Easy to control  Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.   4.The oxygen output is stable and continuously   5.Low-pressure oxygenproduction working pressure 1.5-2 Bar.           Zeolite material Specifications

Item	Unit	OGPOX3L	OGPOX5L	OGPOX7L	OGPOX10L
Oxygen output	LPM	3	5	7.5	10
Oxygen   concentration	%	90%±5%
Air flow rate	LPM	36-45	60-75	90-115	150-200
Pressure(inlet)	Mpa	0.14-0.18	0.14-0.18	0.15-0.2	0.18-0.25
Pressure(outlet)	Mpa	0.06-0.08
Temperature	℃	indoor temperature
Relative   humidity	%	≤ 70%±10%
Noise	Db	≤60	≤60	≤60	≤60
Dimension	mm	D200×290	D200×410	D200×470	D200×500
Net weight	kg	14.00	17.85	19.10	21.30

    High Efficiency –Specifications

Item	Unit	OGPOX3AL	OGPOX5AL	OGPOX7AL	OGPOX10AL	OGPOX15AL
Oxygen output	LPM	3	5	7.5	10	15
Oxygen concentration	%	90%±3%	90%±3%	90%±3%	90%±3%	90%±3%
Air flow rate	LPM	36-45	60-75	90-115	150-200	180L/Min
Pressure(inlet)	Mpa	0.14-0.18	0.14-0.2	0.15-0.21	0.18-0.25	0.35
Pressure(outlet)	Mpa	0.06-0.08	0.06-0.08	0.06-0.08	0.06-0.08	0.06-0.08
Temperature	℃	indoor temperature
Relative humidity	%	≤ 70%±10%
Noise	Db	≤60	≤60	≤60	≤60	≤60
Dimension	mm	D200×310	D200×430	D200×500	D200×560	D200×880
Net weight	kg	15.70	18.30	19.30	30.60	32.5
