254nm uv filter fish pond filter system

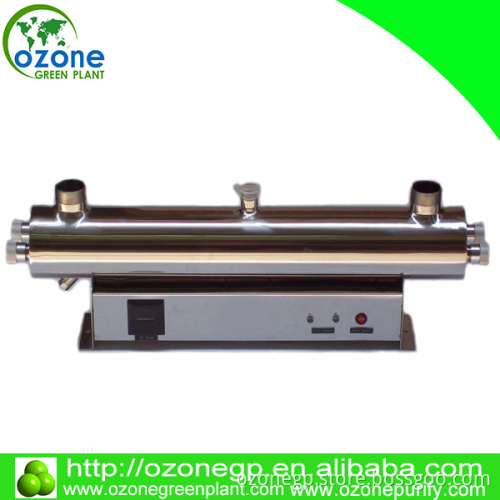

                                        254nm uv filter fish pond filter system     Introduction:
Using 304 or 316L stainless stell material made of pipeline reaction cavity (inside and outside carry on high strength polishing processing), the UV lamp(brand Hanovia) installed in the high transmittance quartz sleeve, sealed by the 0-type circle. Water flows inlet meanwhile the ballasts light UV lamp, high intensity irradiation of UV kill the bacteria and viruses in water, the sterilization rate can reach 99.9% when the water flow out.   Features:
System design criteria used by the U.S. NSF55, and CJ/T204-2000.
Product specification is complete, flow range from 0.1 to 500T/Hr.
The pipeline reactor chamber using 304/316L stainless steel, automatic welding, the high-brightness polished.
Low-pressure high-intensity mercury lamp, life of 9000-13000 hoours, supporting high-efficiency electronic ballast, sterilizaton rate as high as 99.99%.
Application:
Aquarium,Sewage treatment,Food, Cosmetic, Medicine Living water, Drinking water, Pure water, Mineral water
Swimming pool, landscape water, Circulating cooling water.      Specification:

Model	Water Flow	Power	Dimensions(mm)	Water Inlet	Service life
OGP-UV005G	0.5GPM(0.1T/H)	8W	L250*W48*H65	1/4″	9000-13000h
OGP-UV 01G	1GPM (0.2T/H)	10W	L295*W60*H80	1/4″	9000-13000h
OGP-UV 02G	2GPM (0.5T/H)	14W	L370*W60*H85	1/2″	9000-13000h
OGP-UV 04G	4GPM (1T/H)	17W	L450*W73*H110	1/2″	9000-13000h
OGP-UV 06G	6GPM (1.3T/H)	23W	L520*W73*H110	3/4″	9000-13000h
OGP-UV 08G	8GPM (1.8T/H)	28W	L650*W73*H110	3/4″	9000-13000h
OGP-UV 12G	12GPM(2.7T/H)	40W	L950*W73*H110	1″	9000-13000h
OGP-UV 3T	3T/H	40W	L950*W125*H250	1″	9000-13000h
OGP-UV 4T	4T/H	80W	L950*W125*H250	1.2″	9000-13000h
OGP-UV6T	6T/H	80W	L950*W140*H280	1.5″	9000-13000h
OGP-UV 8T	8T/H	120W	L950*W160*H310	2″	9000-13000h
OGP-UV 10T	10T/H	160W	L950*W180*H310	2″	9000-13000h
OGP-UV 12T	12T/H	160W	L950*W215*H335	2″	9000-13000h
OGP-UV 15T	15T/H	200W	L950*W215*H335	2″	9000-13000h
OGP-UV 20T	20T/H	240W	L950*W215*H385	2.5″	9000-13000h
OGP-UV 25T	25T/H	320W	L950*W275*H465	2.5″	9000-13000h
OGP-UV 30T	30T/H	360W	L1300*W275*H465	3″	9000-13000h
OGP-UV 40T	40T/H	480W	L1300*W275*H465	3″	9000-13000h
OGP-UV 50T	50T/H	600W	L1300*W275*H485	4″	9000-13000h
OGP-UV60T	60T/H	750W	L1700*W280*H490	4″	9000-13000h

    UV sterilizer Advantages for Swimming pool
  1.Decrease in chlorine use   2.UV is effective against all micro-organisms   3.Provides excellent water quality and a more pleasant bathing environment   4.UV products no by-products   5.Reduces the need for "Shock Treatments"   6.Fully automatic and cannot be over dosed   7.UV is a non hazardous,green technology       Excellent after-sales service:   1 year wareranty again the manufacture defect,offer life time consultation on problems occurred.   Report on the making process.   Marketing feedbacks tracing.       All of our products are favored and trusted by customers with contemporary design (simplicity, innovation, practicability, multifunction and fashion), convenient operate, durable and its competitive price.       Please don't hesitate to contact with us, you are strongly expecting and welcoming to be the one of our partners in the coming day!
