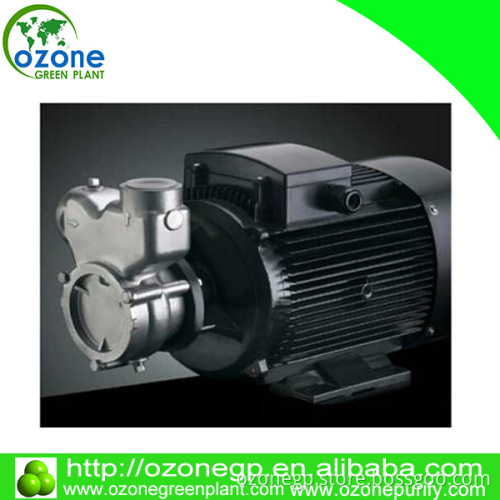

1-12m3/h commercial mixing water pump

      1-12m3/h commercial mixing water pump Specifications ozone water mixing pump,pump, water pump
1.ozone generator
2.high concentration water mixing pump
3.ozone generator parts                     Mixing system for ozone dissolved in water   1. Mixing system is simple and it intakes Ozone gas to the pump and mix Ozone with liquid in the pump, while conventional system needs additional equipment like "ejector" and "static mixer" to make ozone water.   2. Ozone dissolution ratio is more than 80~100% in case of out mixing system which is extremely high compared with conventional system. This dissolution ratio varies depending on water temperature, gas concentration, PH concentration etc.   3. CH Mixng pump is most suitable to pressurize the air and liquid, and let the air dissolved into the liquid, compared with any other type of pumps and apparatus like atatic mixer.   4. CH system does not use compressor, pressure dissolve tank, ejector and static mixer, which makes our system small in size and competitive in price. In case of conventional centrifugal pump method, the pump suck the liquid and air, and mix them and transport them.     Working condition:   PH: 3~9   Liquid temperature:-150C--1200C   Highest environment temperature: 400C   Speicefication:

Item	20OGP-1SS	20OGP-1DS	25OGP-2SS	25OGP-2DS	40OGP-6SS	50OGP-12
Head of delivery	40M				50M
Flow rate	1T/Hr		2T/Hr		6T/Hr	12T/Hr
Water input size	0.75’’		1’’		1.5’’	2’’
Water output size	0.5’’		0.75’’		1.2’’	1.5’’
Power	0.55Kw		1.1Kw		3Kw	5.5Kw
Voltage	380V	220V	380V	220V	380V	380V
Speed	2900r/min
Size of Tank	Φ200×320mm (3mm thickness)				Φ273×720mm (3mm thickness)

      Working condition: * designed for clear and low viscosity liquid, or liquid containing extra-fine foreign matters. * Liquid temperature: -150C ~ 1200C * Maximum ambient temperature: +400C * Gas-liquid ratio 1:9 (Gas suction volume 8~10%) * Inlet: horizontal, Outlet: Vertical.
