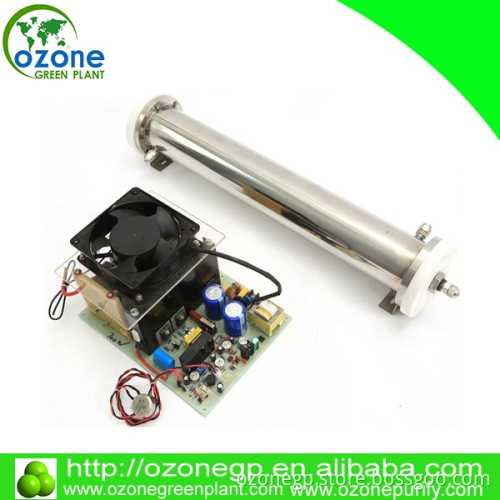

15G enamel ozone tube for medical ozone generator

  15G enamel ozone tube for medical ozone generator   1. Electrodes: Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless stee l external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage. 2. Cooling way Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output. 3. Adjustable ozone output: 20-100%. Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control. 4. High ozone concentration and ozone output range 15G ~70g/hr. Specification

Item	Unit	OGP-TC 15G	OGP-TC 25G	OGP-TC 35G	OGP-TC 60G	OGP-TC70G
Oxygen flow rate	LPM	1~4	2~7.5	3~10	4~15	8~20
Ozone concentration	Mg/L	102~65	115~57	116~63	110-70	112-63
Ozone output	G/Hr	6.1-15.6	13.8~25.65	20.8-37.8	26.4-63	53.7-75
Power	Kw	≤0.15	≤0.3	≤0.5	≤0.68	≤0.77
Output frequency	KHz	2400
High voltage output	V	3600V
Cooling method	Water cooling for internal & external electrodes
Cooling water flow rate	LPM	2L/MIN	3L/MIN	5L/MIN	6L/MIN	6L/MIN
Cooling water temperature	℃	35
Fitting size	mm	1.Air inlet & ozone outlet: EDφ8mm  2.Cooling water: EDφ10mm
Adjustable range	%	20-100
Power supply	V/Hz	110/220V 50/60HZ
Fuse	A	3		5
Ozone tube dimension	mm	270*105*110	305*105*110	425*105*110	595*105*110	665*105*110
Power supply dimension	mm	160*140*89	177*161*102	240*180 *142	240*180 *142	240*180 *142
Ozone tube weight	Kg	3.1	3.7	4.5	5.6	6.5
Power supply weight	Kg	1.18	1.74	3.29
