Kill the mould of mixed bacteria and aphids mushrooms ozone generator,Air Cooling Quartz Ozone Generator Parts

  Kill the mould of mixed bacteria and aphids mushrooms ozone generator,Air Cooling Quartz Ozone Generator Parts               Technology: It uses Corona Discharge technology to produce ozone.

Item	Unit	OGP-BC
		3GD	3GM	3GA
Oxygen feed flow rate	LPM	1~3
Ozone concentration	Mg/L	46.2~26.8	60~26.8mg/L
Ozone output	G/Hr	2.77~4.8	3.6~4.8
Power	KW	0.03	0.05
Cooling method	/	Air cooling for internal and external electrode
Air inlet & outlet	mm	ID6
Ozone output adjustable range	%	/	/	20-100
Working Voltage	V/Hz	12V	110V 60HZ /220V 50HZ
Ozone tube dimensions	mm	141*77*82
Power supply dimensions	mm	70*95*75	162*68*42	168*80*75
Ozone tube weight	Kg	0.52	0.52	0.52
Power supply weight	Kg	0.28	0.48	0.51

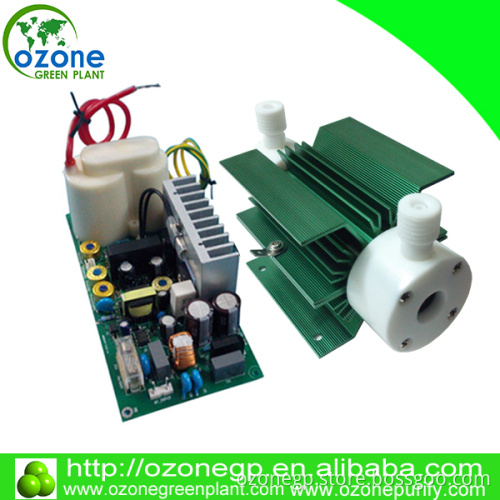

    Material of ozone tube 1. high pure silica quartz external electrode,  2. SS 316L of internal electrode 3. teflon connectors, 4. corrosion-resistant high purity fluorine rubber ring seal,  5. air cooling aluminum radiator etc.   Features of 12volt DC electric board   1. Scan key: Automatically identify and record matched frequency and width pulse 2.  Voltage range: 8V ~ 15V; 3. AC pump drive output; 4. DC fan drive output; 5. AC pump automatic protection function 6. DC fan automatic protection function 7. Time delay function 8. Intelligent On/Off control key 9. Three selectable drive currents: Maximum, Medium and Small; 10. Corrosion-resistant coating Features of adjustable electric board working voltage: 110V/60HZ (95~135V ) ; 220V/50HZ (180~250V) output power is adjustable ozone output is adjustable over heated, over-current, over-voltage protective measures corrosion-resistant coating Features of enclosure electric card working voltage: 220V/50HZ output power not adjustable ozone output not adjustable moisture resistance    Our Advantages: 1.Extremely low rate of ozone decay & high ozone concentration.    Ozone concentration is around 26~100 mg/L, which is much higher than conventional products.   2.Low working voltage corona discharge ozone generator The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.   4.Small in size ozone generator unit. It is 1/4 smaller than similar products with same capacity. 5.Easy to maintain and install ozone tube with its power supply (ozone generator spare parts) Function of ozone:  1. Aquaculture, Aquarium, Fish farming Water treatment 2. Swimming pools Water treatment 3. Sewage water treatment 4. Various Water Disinfection& sterilization 5. Air purification and sterilization 6. Food disinfection
