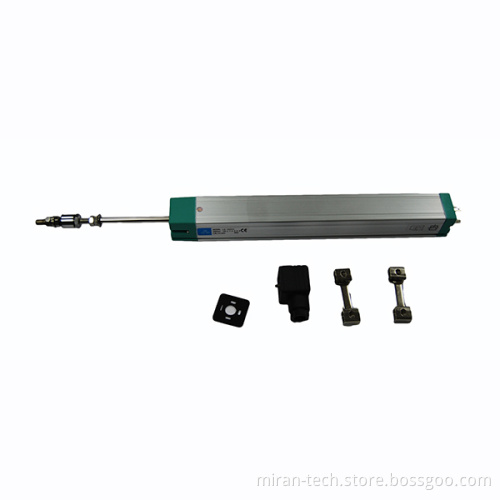

Linear Machinery Motion Potentiometer

Specifications Linear Machinery Motion Potentiometer

1. Three year guarantee;

2. Reasonable price;

3. Top quality to be worth of the money;

Linear Machinery Motion Potentiometer (brand MIRAN / LinecSKI / MAX, equivalent to Novo and Gefran)   Product Description

LS Linear Machinery Motion Potentiometer	75~110mm	125~175mm	200~550mm	600~1000mm	1150~2000mm	Measuring Range (mm) 75 100 110 125 130 150 175 200 225 250 275 300 325 350 360 375 400 425 450 475 500 550 600 650 700 750 800 850 900 950 1000 1150 1250
Linear Precision (±%FS)	±0.2%	±0.1%	±0.05%	±0.05%	±0.04%
Resistance (±10%)	5ΚΩ			10ΚΩ	20ΚΩ
Effective Stroke	range+7mm
Resolution	Infinite
Repeatability Precision	0.01mm
Max Speed	10m/S
Recommended Current	≤1mA
Temperature Range	-60°C~+150°C
Content Type	0~100% × input voltage (change with the movement of the draw bar)
Sensitivity	1
Temperature Drift	infinitesimal

    Linear Machinery Motion Potentiometer Installation Size (mm) :

Applications: LS Linear Machinery Motion Potentiometer is a generic type, suitable for most kinds of machines, such like: injection molding machines, die casting machines, rubber machines, footwear machines, EVA injection machines, bottle blowing machines, woodworker machines, hydraulic mach

  Packaging & Shipping Each piece of Linear Machinery Motion Potentiometer in a cardboard tube; Below is our packed in-stock products in our ShenZhen warehouse.   Company Information Shenzhen Miran Technology Co., Ltd. http://www.miran-tech.com
http://www.mirantech.com
ADD: Building 1, High-Tech Park, Guangming New District, Shenzhen, Guangdong, China     Our advantages: 12 years of business experiences, strong capability in R&D. We are the first company to use scraping technique on the board of electronic ruler, to make precision linear. After having mastered the “potentiometer” technology, our company developed magnetostrictive motion position sensor, linear wire potentiometer, and angle sensor. All our products have patent, and we are a leading company in China. Strict testing to assure high quality, every product will go through vibration test, Low and high temperature test, electromagnetic interference regulatory test, endurance test, and explosion proof test. Strong production capacity, we have two factories both in ShenZhen and HuBei Province, and also a lot in-stock products in warehouses. Can meet large demands from our customers, and always deliver the orders on time. Excellent sales & after-sales service, our headquarter is conveniently located in ShenZhen, and have branches all over China. We guarantee 3 years warranty for our products.   Our main products are: potentiometer / resistor type Linear Motion Position Measure ( Linear Machinery Motion Potentiometer ), scale sensor(linear electronic ruler), liquid water level sensor, motion position sensors (non-contact magnetic electronic ruler), slide ohm potentiometer (liquidmeter measurement and control system), angle transducer (angle ruler), interval lubricating oil feeders, and related accessories such as V/A converter, display controller.
