Linear Position Shoe Machine Sensor

Specifications Shoe Machine Sensor

1. Three year guarantee;

2. Reasonable price;

3. Top quality to be worth of the money;

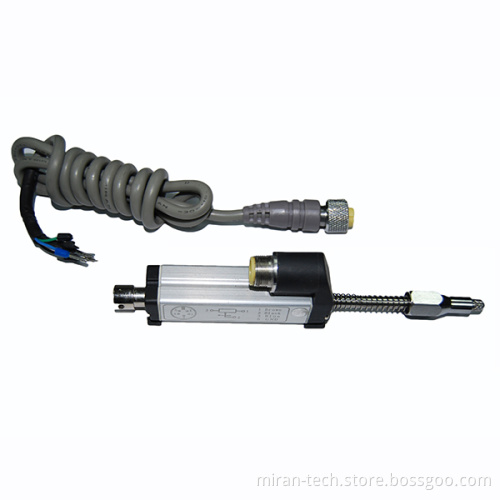

Linear Position Shoe Machine Sensor / Linear Position Sensor (equivalent to Novo and Gefran brand)     Product Description

KTR Shoe Machine Sensor	10mm	15mm	25mm	50~75mm	100~125mm	Measuring Range (mm) 10   15   25 50   75 100 125
Linear Precision (±%FS)	±1.0%	±0.8%	±0.5%	±0.2%	±0.1%
Resistance (±10%)	1ΚΩ			5ΚΩ
Effective Stroke	range+3mm
Resolution	Infinite
Repeatability Precision	0.01mm
Max Speed	5m/S
Recommended Current	≤1mA
Temperature Range	-60°C~+150°C
Content Type	0~100% × input voltage (change with the movement of the draw bar)
Sensitivity	1
Temperature Drift	infinitesimal

  Shoe Machine Sensor Installation Size (mm) :

Applications: KTR is a minitype Shoe Machine Sensor, self-return, suitable for small rooms, such like: bottle blowing machines, tension adjuster, speed ajuster, robots, printing machines, packing machines and so on.

  Packaging & Shipping Each piece of Shoe Machine Sensor in a cardboard tube; Below is our packed in-stock products in our ShenZhen warehouse.   Company Information Shenzhen Miran Technology Co., Ltd. http://www.miran-tech.com
http://www.mirantech.com
ADD: Building 1, High-Tech Park, Guangming New District, Shenzhen, Guangdong, China     Our advantages: 12 years of business experiences, strong capability in R&D. We are the first company to use scraping technique on the board of electronic ruler, to make precision linear. After having mastered the “potentiometer” technology, our company developed magnetostrictive motion position sensor, linear wire potentiometer, and angle sensor. All our products have patent, and we are a leading company in China. Strict testing to assure high quality, every product will go through vibration test, Low and high temperature test, electromagnetic interference regulatory test, endurance test, and explosion proof test. Strong production capacity, we have two factories both in ShenZhen and HuBei Province, and also a lot in-stock products in warehouses. Can meet large demands from our customers, and always deliver the orders on time. Excellent sales & after-sales service, our headquarter is conveniently located in ShenZhen, and have branches all over China. We guarantee 3 years warranty for our products.   Our main products are: potentiometer / resistor type Injection Machine Sensor(electronic ruler), scale sensor(linear electronic ruler), Shoe Machine Sensor, motion position sensors (non-contact magnetic electronic ruler), slide ohm potentiometer (liquidmeter measurement and control system), angle transducer (angle ruler), and related accessories such as V/A converter, display controller.
