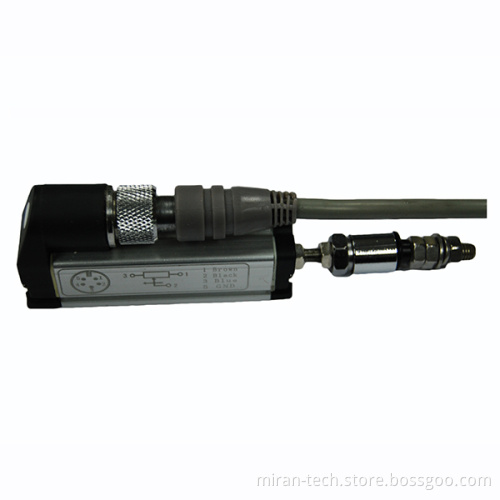

KTM Motion Sensor / Linear Position Sensors

Specifications KTM Motion Sensor

1. three year guarantee

2. top quality in China

3. very reasonable price

KTM Motion Sensor / Linear Position Sensors   Product Description

KTM Motion Sensor	10mm	15mm	25mm	50~75mm	100~300mm	Measuring Range (mm) 10   15   25 50   75 100 125 150 175 200 225 250 275 300
Linear Precision (±%FS)	±1.0%	±0.8%	±0.5%	±0.2%	±0.1%
Resistance (±10%)	1ΚΩ			5ΚΩ
Effective Stroke	range+3mm
Resolution	Infinite
Repeatability Precision	0.01mm
Max Speed	5m/S
Recommended Current	≤1mA
Temperature Range	-60°C~+150°C
Content Type	0~100% × input voltage (change with the movement of the draw bar)
Sensitivity	1
Temperature Drift	infinitesimal

  Motion Sensor Installation Size (mm):

Applications: KTM is a minitype Motion Sensor, suitable for narrow space, such like: steering machine on a plane or a boat, footwear machines, injection machines, printing machines, and packing machines.

  Packaging & Shipping Each piece of motion sensor in a cardboard tube; Below is our packed in-stock products in our ShenZhen warehouse.   Company Information Shenzhen Miran Technology Co., Ltd. http://www.miran-tech.com
http://www.mirantech.com
ADD: Building 1, High-Tech Park, Guangming New District, Shenzhen, Guangdong, China     Our advantages: 12 years of business experiences, strong capability in R&D. We are the first company to use scraping technique on the board of electronic ruler, to make precision linear. After having mastered the “potentiometer” technology, our company developed magnetostrictive motion position sensor, linear wire potentiometer, and angle sensor. All our products have patent, and we are a leading company in China. Strict testing to assure high quality, every product will go through vibration test, Low and high temperature test, electromagnetic interference regulatory test, endurance test, and explosion proof test. Strong production capacity, we have two factories both in ShenZhen and HuBei Province, and also a lot in-stock products in warehouses. Can meet large demands from our customers, and always deliver the orders on time. Excellent sales & after-sales service, our headquarter is conveniently located in ShenZhen, and have branches all over China. We guarantee 3 years warranty for our products.   Our main products are: potentiometer / resistor type Motion Sensor(electronic ruler), scale sensor(linear electronic ruler), Magnetostrictive Linear Motion Potentiometer, motion position sensors (non-contact magnetic electronic ruler), slide ohm potentiometer (liquidmeter measurement and control system), angle transducer (angle ruler), and related accessories such as V/A converter, display controller.
