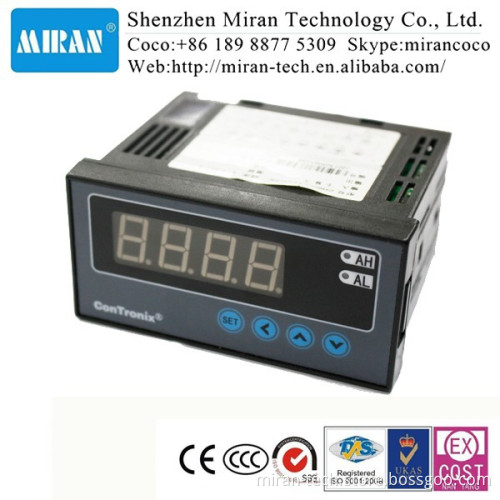

electronics measuring instruments digital power meter                   Specification of CH6 Data Display Instrument   1, Power: 100V AC-240V AC. power dissipation <4W;
10V DC-36V DC, Power dissipation <6W; (Please follow each 24VDC / 0.5A, 12VDC / 2A configurable power supply)
2, Working environment: 0°-50°, humidity below 90%RH, No condensation;
3, Display arrange: -1999~9999, decimal point position can be set;
4, Input singal type: Universal input, can choose through parameter determination
(0-10VDC inout is non-standard function, need customization )
5, Intrinsic Error: less than 0.5% FS;
6, Measurement control cycle : 0.2S;
7, Alarm output: 2 point alarm output, 220V AC, 3A;

Content	Code & Instructions						Note
	CH6	Single Display, 2 point alarm, External power 24V
Size	A	160*80*125 or 80*160*125 (W*H*L)
	B	96*96*76 (W*H*L)
	C	96*48*82 or 48*96*82 (W*H*L)					acquiescent
	D	72*72*75 (W*H*L)
	E	48*48*108 (W*H*L)
Panel Shape	H	Horizontal					acquiescent
	S	Vertical
	F	Quadrate
Color Display	R	Red
Alarm	T	2 point alarm output
Transmitting Output	A0	No Transmitting Output
	A1	Current output, set choose 4mA~20mA,0mA~10mA,0mA~20mA					add 20.8$
	A1G	Current output, insulate with external supply					add 25.8$
Outside for the transmitter	Power	External supply 24V/50mA
Instrument Power	V0	100V AC-240V AC
	V1	10V DC-36V DC					add 7$

              Some More Expanding function, Please contact us !   Mobile/WhatsApp:+86 189 8877 5309 Skype/WeChat: mirancoco         Note:   This instrument do not have  zero clearing function !
