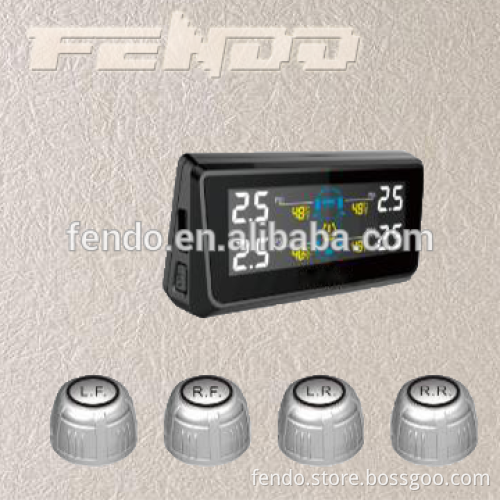

External Solar LCD Color screen Large solar panels waterproof IP6K7K tire pressure monitoring system Fuel-efficient

Product Description External Solar LCD Color screen Large solar panels waterproof IP6K7K tire pressure monitoring system, Fuel-efficient  pressure monitoring system
tire pressure monitoring system, lcd monitor lift system, temperature monitoring systems
1.1.LCD color screen, solar power supply, four built-in sensors 2. Large solar panels, easier access to solar power, but also with an additional USB interface to charge 3.Ultralight sensor design
4. Real-time high precision tire temperature and pressure, four-wheel data at the same time display 5.Fuel-efficient, predict leak, extend tire life, balance tire pressure, to ensure safe driving 6.PSI, BAR two kinds of pressure unit selection, ℃ and ℉ two temperature units selected 7. Each sensor has a separate ID code, tire position can be interchangeable
8. Sensor has a waterproof function, waterproof rating: IP6K7K
9. Import TPMS batteries and chips, lasting power, more accurate monitoring data to ensure the safety of life.
10. Wireless RF technology, the sensor every 4 minutes to update the data, tire pressure and temperature anomalies, real-time alarm
parameters External Solar LCD Color screen Large solar panels waterproof IP6K7K tire pressure monitoring system, Fuel-efficient pressure monitoring system


tire pressure monitoring system, lcd monitor lift system, temperature monitoring systems


Display parameters:

Operating temperature	-20℃-80℃	Storage temperature	-35℃-85℃
Input voltage	DC8V-30V	Receive frequency	43.92MHZ±0.05HZ
Operating Voltage	3.3-4.2V	size	( L*W*H )mm：87*40*20mm
weight	53g	disply	Solar Charge Display

Sensor parameters:

Pressure range	0-3.5bar	Pressure accuracy	±0.1bar
temperature range	-40℃-125℃	Temperature accuracy	±3℃
Transmit power	10dbm@50Ω	Operating Voltage	2.2-3.3V
Battery Life	＞2 years	size	Height:16 mm,Diameter: 24 mm
weight	9g

Packing & Delivery packing details:

weight of Single set	0.25Kg	size of color box	17.5cm*9cm*5.5cm
Quantity	30 sets / box	Net weight	7.5kg / box
Gross weight	8.5kg/box	Carton size	36cm*30.5cm*29cm

delivery details: shipped in 35 days after receipt of deposit
