Braided-reinforced Polyurethane tube with high quality

Specifications 1) Resistance to pressure

2) High quality

3) Middle lining is one layer of high strength weaving fiber



Products features
Working temperature	-50 ~ 260 °C
Support Pressure	0.3 to 0.9MPa
Explosive Pressure	5.5~9.7MPa
Hardness	35~80 shore A
Thickness	2mm ~ 6mm
Diameter Range	10mm~120mm
Color options	any color, at your request
Size tolerance	+/- 0.5mm
Characteristic	Ageing resistant performance, high temperature resistance  and high vibration resistance
Application	In food, medical, automotive, diving, construction machinery in the braking system, fuel system, and defense industry

    CONSTRUCTION

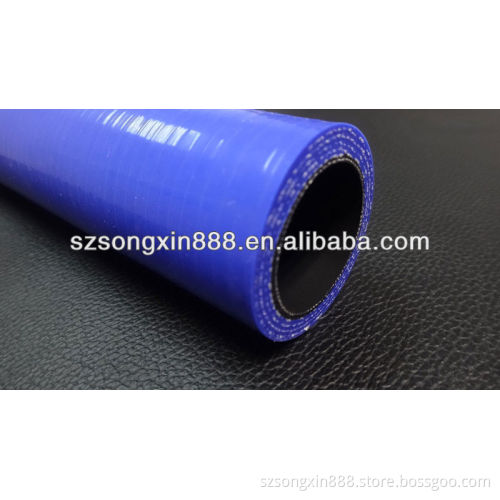

Extruded VMQ type silicone tubing with a polyester braiding of great resistance. Plain outer and inner appearance. Wall thickness: variable, depending on diameter.   APPLICATIONS
Cooling and heating systems  Gas and oil stains do not damage the tubes, but they should neither be used to transport fuel or oil, nor be submerged in these liquids.   TECHNICAL CHARACTERISTICS
Recommended for places where a high resistance to pressure is needed because it doesn′t spoil with age and his mechanical characteristics don′t change in its operational temperatures. Highly resistant to ozone Not affected by anti-freeze or anti-rust liquids Highly resistant to hardening with very good compression characteristics The materials of the tubes have a very long life and reduce maintenance problems.
