ultraviolet germicidal lamp uv light whole house uv water filter

Product Description Features: 1.275nm UVC LED 2.Sterilizing rate of 99.9% 3.No pollution 4.Rapid Sterilization 5.Low power consumption 4.Easy to install,remove and wash 6.Long led operation life Description:
1.This product  use internationally advancedUVC led tosterilize 2.Sterilization rate can reach 99.9% 3. Aluminum housing  4.Completed non-pollution 5.Do notproduceozone and mercury 6.Safe and reliable 7.Suitable for household water dispenser purification
Typical Performance(Ta=25℃):

Items	Symbol	Typ	Units
Input Voltage	Vi	220	V
Power Dissipation	Pd	0.7	W
water-carrying capacity	L	1.0	L/min
Total Length	L	158	mm
Waterproof level	-----	IP65	-----
Net Weight	Wei	540	g
Estimated Life	Life	3000	hour

Notes:
1.Please proceed with caution when handling any UVLEDs driven at low or high current. Since UV light can be harmful to eyes, do Not look directly into the UV light, even through an optical instrument.
2.UV protective glasses are required to use in order to avoid damage by UV light in case of viewing UV light directly.
Product Dimensions:
Notes:
1. All dimensions unit in mm.
2. The tolerance is +/ - 0.2mm unless otherwise noted.

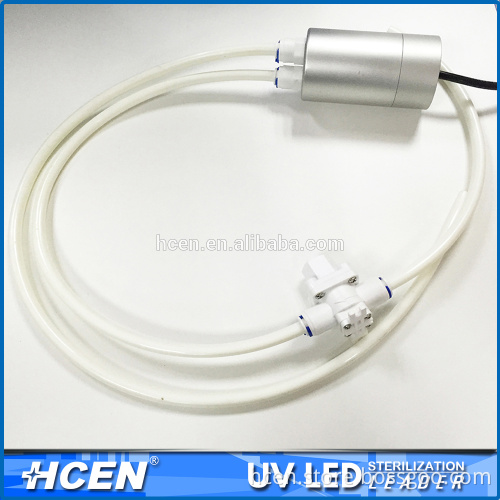

1.Connection is pay attention to the direction of pressure reducing valve, pressure reducing valve with the arrow on one side of the sterilizer water entry, the other end connect tap water; Sterilizer water cooler outlet at the other end. (pressure reducing valve has been adjusted to best bactericidal effect, please do not adjust.)
2.Fixed pressure reducing valve and sterilizer, connect the power, the power indicator is UV LEDS have started to work, sterilization, please turn off the power supply.
3.Sterilizer cleaning at least once a month (tap water).
Notes:
1.Please select a proper power supply voltage.
2.Don't live working cleaning products.
3.UV LED not to direct the eyes and skin.
4.Products are easily broken parts, please take put down gently.
Product Apllications Product Advantages How Our UV Water Sterilizer Work?
Packing & Delivery Packing Information:Normal packing as pictures or according to customer's requests. 1.Payment term: T/T, L/C ,Western Union,Paypal .,ect.
2.Delivery:Carrier is available by express,or sea shipping or ordinary air cargo.
Certifications Our Company Headquartered in Shenzhen, HCEN also have branch in Shanghai, Beijing and Hong Kong. We have marketing and technical supporting teams in Munich Germany, Bangkok Thailand and Malaysia .
HCEN aimed to be a global new technology producer and solution provider. We dedicated in UV (Ultraviolet) LED diode ,curing system and diverse application of UV LED .
As a promoter of UV LED technology, HCEN own professional UV LED R&D team ,solution engineers to give full support of our customer. HCEN invest about 10%-20% of the sales volume to develop new products.
Our Service UV LED Solution Team
HCEN is a professional UV LED solution provider,supported by 22 application engineers and R&D experts backing from Japan and Germany.They are experienced in UV LED encapsulation.Tell us your application and then we provide you the tailored solutions.
Sample Policy:
1.We support free samples for testing!
You just need to pay the shipping cost.
2.Guarantees/Warranties/Terms and Condition.
3.We guarantee our products to be free from manufacturer defects.Warranty and free maintance.
4.Time about 12 month-24 month.
After Sales Service:
Our customer services personnel are experienced product specialists who can answer your questions five days a week from 9 am to 5 pm. Any questions just feel free to contact.
FAQ Q1:Are you a Factory or Trading Company?

Answer: Factory.

Q2:How can I visit your factory?

Answer:Since you come to Shenzhen,contact us before you come,we will pick you up directly to our company.

Q3:When can I get the price?

Answer:Within 24 hours we get your inquiry and confirm the needs and solution.

Q4:How can I get a sample to check your quality?

Answer: After price and payment confirmation, we are honored to send you.

Q5:Can you provide a solution for UV LED substitute for UV Lamp ?

Answer: Pls provide UV Lamp data heet,wavelength,required optial power or radiant intensity . radiant distance and curing area,more info. will help us to provide a exact solution for your application.

Q6:What’s the universal Lead-Time for order delivery?

Answer:

1)7-15 Working days for led diodes undering quantity of 10k.

2)10-30 Working days for curing system and UV LED module

3)Samples will be delivered as soon as payment confirmed .

Q7:What’s the payment terms?

Answer:We can accept T/T,and Paypal.
