High radiation flux 395nm 405nm Led UV For Curing machine

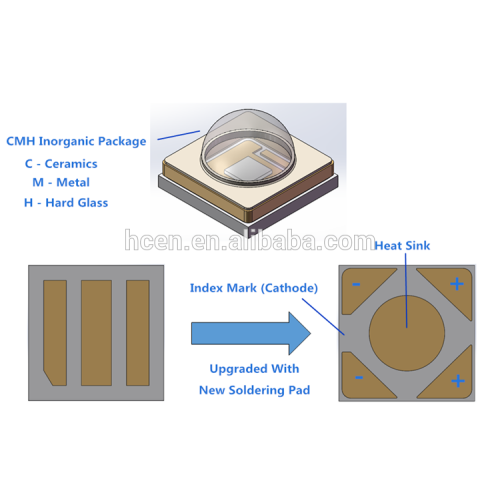

 High radiation flux 395nm 405nm Led UV For Curing machine     Brief introduction on HCEN high radiation flux uvc led         Peak wavelength:395nm 365nm 405nm         Light color: Purple         LED Package:Patented CMH hermetic technology (C for ceramic, M for metal, H for hard glass) real inorganic hermetic package         Product Package: sealed anti-static bag         Radiation Flux(at 700mA imput current):1000mW-1200mW         View Angel:60 deg         CE and RosH certification         One year warranty         8 years technican support           Product Description      Absolute Maximum Ratings at TA=25°c

paramete	Symbol	Rating	Units
Imput Power	Pi	3	W
DC Forward Current	IF	700	mA
Junction Temperature	Tj	125	°c
Operating Temperature Range	Topr	-40°C To +85°C
Storage Temperature Range	Tstg	-40°C To +100°C

Electrical / Optical Characteristics( Ta=25℃ RH=40%)

Parameter	Symbol	Min.	Typ.	Max.	Units
Peak Wavelength	λp	—	395	—	nm
Radiation Flux [2](500mA)	Φe[3]	700	—	800	mW
Forward Voltage [4]	VF	—	3.4	3.8	V
Radiation Flux [2](700mA)	Φe[3]	1000	—	1200	mW
Forward Voltage [4]	VF	—	3.6	4.0	V
Thermal Resistance[5]	Rth	—	10	—	°C/W
Thermal Resistance[5]	Rth	—	12	—	°C/W
Spectrum Half Width	Δλ	—	14	—	nm
View Angle	θ1/2	—	60	—	deg

Our Advantage 1.Manufacturer with experienced technicans from Germany and Japan 2.CMH patented real inorganic hermetic package;C for Ceramic M for metal and H for hard glass 3.High radiation flux 1200mW and small view angle 60 deg 4.Advanced equipment from Japan   Packaging & Shipping Product Package: Sealed anti-static bag   Payment and Shiping       Company Information Shenzhen HCEN Technology Co., Ltd. registered capital of USD 35 million in 2014. HCEN is an independently operated electronic enterprises including the production and sales.Our factory based on Zhongshan with experienced experts from Germany and Japan, advanced equipment of Japan ASM , Maily produce  Ultravoilet LED range from 280nm to 395nm .
