1-3W smd 3535 365nm 375nm 385nm 395nm uv led

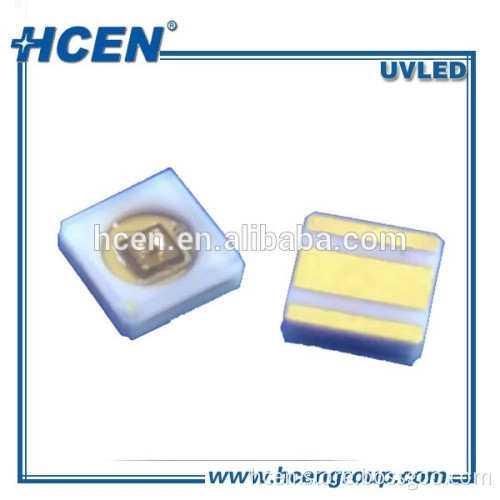

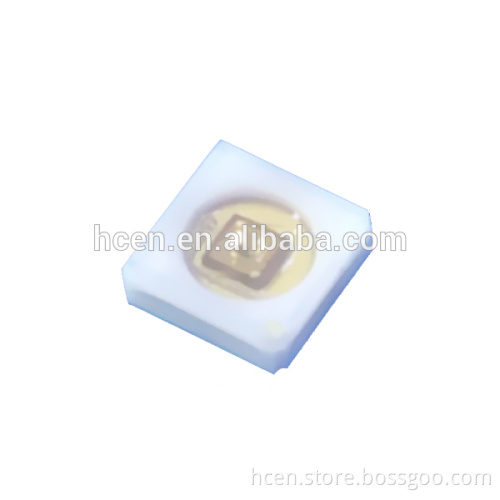

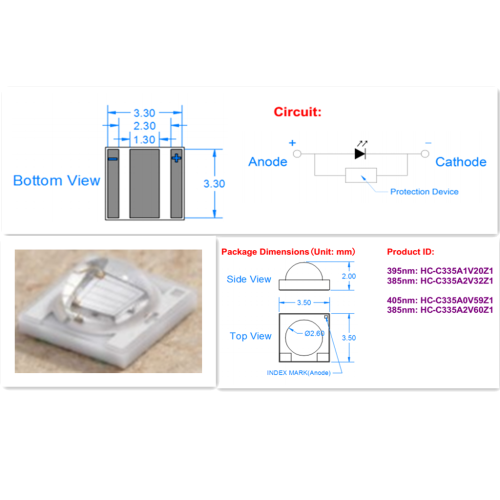

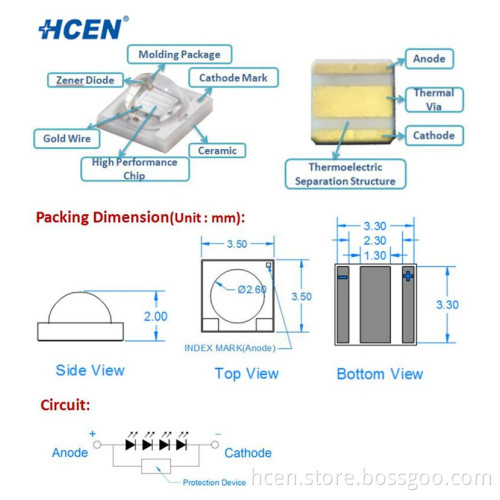

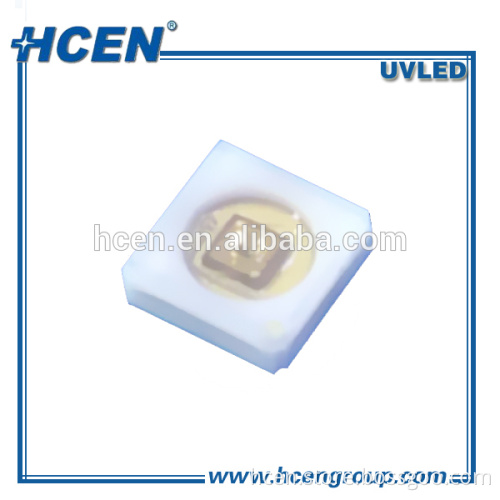

 1-3W smd 3535 365nm 375nm 385nm 395nm uv led                              Main Features                      1.  Emitted Color: Purple   2.  Lens Appearance: Transparent.   3.  3.45x3.45x2.00mm standard package.   4.  Suitable for all SMT assembly methods.   5.  Compatible with infrared and vapor phase   reflow solder process.   6.  Compatible with automatic placement   equipment.   7.  This product doesn’t contain restriction   Substance, comply ROHS standard.                   Application:     1.  Mosquito lamp 2.  UV LED light bulbs 3.  UV flashlight 4.  Manicure lamp 5.  The scorpion lamp 6.  UV glue curing lamp 7.  Other UV lamps             Product Description    Electrical / Optical Characteristics( Absolute Maximum Ratings at TA=25°C )
Characteristics Diagrams Spatial Distribution Graph        Soldering 1. Manual Soldering
The temperature of the iron tip should not be higher than 350℃and Soldering time to be within 3 seconds per
solder-pad.
2. Reflow Soldering Characteristics Product Images     Packaging & Shipping               Our Services   We are professional manufactuer of UV LED emiter .R&D team member back from Japan and Germany. we can provide customized solution for your uv led applicaiton case.  Feel free to contact at Skype:grace_xiaoxhf      Company Information
