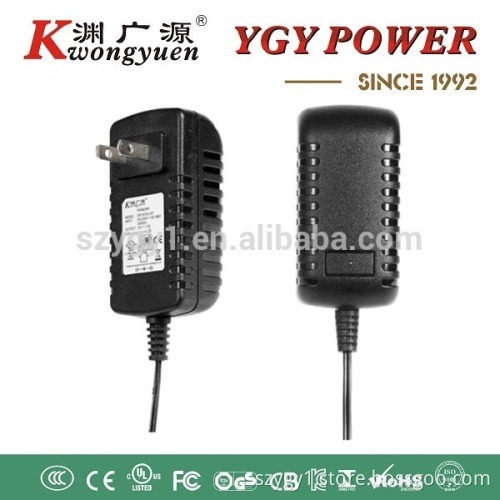

USA Plug 24V1A Power Adapter with UL CE GS certificates

Specifications USA Plug 24V1A Power Adapter

1.International quality;

2.Factory price;

3.Faster lead time:7-10 days;

4.CE,CB,GS.

  Product Description This product is an 24VAC to DC plug-in, Class II, single output power device with constant voltage sources.

Model		YK62
Input	Input connecting plug	USA
	Input voltage	AC100-240V50/60Hz
Output	Output connector	5.5 X 2.1mm/Other, 90cm/optional
	Output voltage	3-24V  + / - 5%
	Outputelectric current	1A
	Ripple wave	(mVp-p): <1%
	Linear modulate	±0.5%max
	Temperature coefficient	±0.02%/°C
	Start time	≤3s(240VAC output,1o=100%)
	Guard time	≥20ms(240VAC input,1o=100%)
	Output standard	24V1A
Protection	Override protection	115%~200%kvA,automatic recovery
	Short-circuit protection	1 channel: automatic recovery
Insulation	Insulation strength	1500VAC/10mA,1MIN
	Insulation resistance	≥30MΩ,DC 500V
Environment	Working temperature	0°C~40°C,10%~90%RH
	Store temperature	-20°C~60°C,10%~90%RH
Size	Size	93X47X57mm
	Weight	119G

  Other Electrical characteristics:   AC inrush current:Inrush current will be less 30A at input 230Vac; Efficiency :Efficiency 73% Min. at 115Vac and 230Vac input and output 100%Load ; Power Saving:Input voltage @230Vac/50Hz, will not exceed 0.2W ; HI-POT:Between primary to secondary: 3000Vac 50Hz for 2-3s; MTBF:30,000 hour Power on at 25 °C; Burn-in:100% Burn - in at 80-100%loading and 2 hours at 40 +/- 5°CEnvironment temperature; Drop Test: 1 corner,3 edges, and 6 surfaces from 1 M height on a hard wooden surface.     DC Plug     Packaging & Shipping   Goods package:  Standard carton package for export with white or colourful inner box.  Order handling time:  It would take about 7-14days after getting your order and payment.        Our Services     YGY's capability:   1.Production: 50,000 units per day;   2.Advanced equipments:SMT,AI machine,35 safety check machines,HI-POT machine and etc;   3.Testing reports:YGY could provide the testing reports for customers;   4.Certificates: ISO9001:2008,GS,CE,CB,CCC,UL,FCC,KC and S-MARK.YGY could provide the certificates NO. for customers to check.   Company Information       Dear Sir and Madam, please feel free to contact us to know more about the product and us.     YGY Power ,your safe partner!
