2-Port USB 3.0 PCI-E Express NEC Interface Card

Specifications 1.USB 3.0 PCI-E Express NEC Interface Card

2.IC NECD720200F1

3.Transfer rates up to 5Gbps

4.manufacturer

5.reasonable price

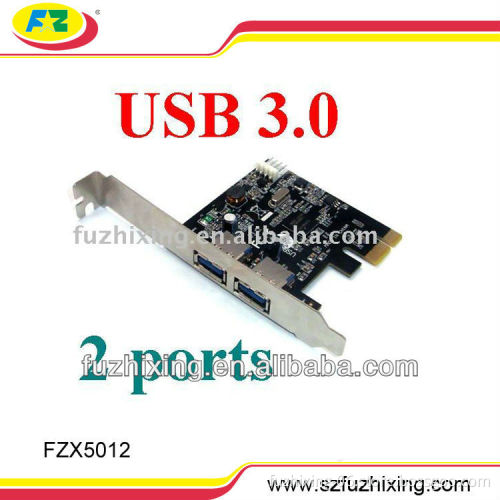

USB 3.0 PCI EXPRESS CARD(FZX5012)
Features: Backwards compatible with USB 1.0/1.1/2.0 Supports PCI Express Base Specification Revision 2.0. Single-lane (x1) PCI Express throughput rates up to 4.8Gb/s. Compliant with Universal Serial Bus 3.0 specification Revision 1.0. Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 0.95. Supports simultaneous operation of multiple USB 3.0, USB 2.0, and USB 1.1 devices. Supports USB data transfer rate of 1.5/12/480/5000 Mbps. Expands two external USB3.0 Super-Speed ports on the system. Each USB port supplies maximum +5V / 900mA power output to USB device. *Built-in 4-pin power connector for receiving extra power supply from system. Embeds Japanese NEC 720200 Chipset that provides excellent stability and compatibility Support USB 2.0 (Low-Speed 1.5Mbps / Full-Speed 12 Mbps / High-Speed 480 Mbps) 2 SDP (Shielded Differential Pair) is added to meet USB 3.0 SuperSpeed standard. Hot-swapping feature allows you to connect/disconnect devices without powering down the system. Driver supports for Microsoft Windows 2000, XP, Vista, and 7 operating system. Certified by CE, FCC, RoHS, and Microsoft WQHL approval. Specifications: Interface: Interface: Single-Lane (x1) PCI Express Gen2 Mode USB 3.0 Controller: NECD720200F1
Port: 2 external USB3.0 ports Speed: Data Transfer rate of 1.5/12/480/5000 Mbps. Low Speed (1.5Mbps), Full Speed (12Mbps), High Speed (480Mbps), Super Speed (5Gpbs) Power Input: SATA Power Connector Power output: +/-5V / 900mA (each port) Compatible: USB1.1/2.0/3.0 Operating Systems: Windows 2000/XP/2003/Vista/7(32/64bit)
