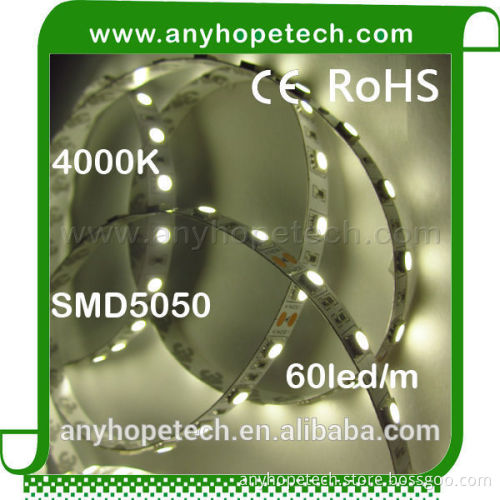

high lumen Ra 90 12v 24v UL epistar chip 4000k led strip 5050 light

high lumen Ra 90 12v 24v UL epistar chip 4000k led strip 5050 light

Get Latest Price

Delivery Time:: 3 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Product Description high lumen Ra 90 12v 24v UL epistar chip 4000k led strip 5050 light The led flexible strips is easy to setup and quick to install The LEDs will last up to 50,000 hours Covered with an silicone glue coating to protect the led stripe 5m/reel Can be cut to desired length (each 5cm or 10cm intervals) Available in 7 different colours Self-adhesive backing for easy installation Low voltage (DC12V/24V) and low power consumption Flexible and lightweight Supplied with easy-to-use connection accessories

Model:AH-5050-24-60 LED Type: 5050SMD Epistar chip LED QTY: 60LEDs/Meter, 5Meters/Roll, 300LEDs/Roll, 300LEDs/16.40Ft Power: 14.4W/Meter, 1.2A/M(12VDC), 0.6A/M(24VDC), 72W/Roll
Pitch: 16.7mm / 0.66" DC12V (Every 3 LEDs cut at 50mm / 1.97")
DC24V (Every 6 LEDs cut at 100mm / 3.94")

PCB Color: Brown, White, Black (Optional) Cable length: 35cm / 13.78" Free end cap: 1 Piece / Meter (Optional) Free mounting clip: 2 Pieces / Meter (Optional)

View angle: 120 degree
CRI: >80 CRI: >90 are available. Max Lumens per LED: 9lm(Red),9lm(Yellow),15lm(Green),10.5lm(Blue),22.5lm(White),21lm(Warm White)
Color Temperature: 2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K

Model Number	Color	Typ.Flux (LM/M)	LED QTY (LEDs/M)	Voltage (DC)	Power (W/M)
AH-5050RGB-12/24-60	RGB	R180,G300,B105	60	12V 24V	14.4
AH-5050R-12/24-60	Red	540
AH-5050Y-12/24-60	Yellow	540
AH-5050B-12/24-60	Blue	630
AH-5050G-12/24-60	Green	900
AH-5050W-12/24-60	White	1350
AH-5050WW-12/24-60	Warm White	1260

Super Bright Warm White: 1320Lm/Meter Super Bright Cool White: 1410Lm/Meter are available. Note: Amber, Orange, Pink, Purple color are optional.

Lumen maintenance at 10,000hrs: 95%
Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~ 176ºF) Operating temperature: -20°C~50°C / (-4ºF ~ 122ºF) Warranty: 2 years
Certification: CE RoHS

LED Flex Strip Type	IP Protection	Size	Reference Model Number
Non waterproof	IP20	10 x 2mm 0.39 x 0.08"	AH-5050-12/24-60
Epoxy / Silicone series	IP65	10 x 2.5mm 0.39 x 0.09"	AH-E5050-12/24-60
Silicone tube series	IP66	12 x 4mm 0.47 x 0.16"	AH-F5050-12/24-60
U-shape silicone series	IP67	12 x 5mm 0.47 x 0.19"	AH-U5050-12/24-60
PVC Tube + Epoxy series	IP68	12 x 4mm 0.47 x 0.16"	AH-G5050-12/24-60
All silicone series	IP68	12 x 5mm 0.47 x 0.19"	AH-S5050-12/24-60

Packaging & Shipping 5Meters/Roll, 1 Roll into anti-static bag
50Rolls/Carton, Carton Size: 50x40x30cm / 19.69x15.75x11.81"

Operating driver: LED Transformer with DC12V/DC24V output Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop The flexible single color strip connect to power supply:

The flexible RGB strip connect to power supply:

Company Information Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China. Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.
