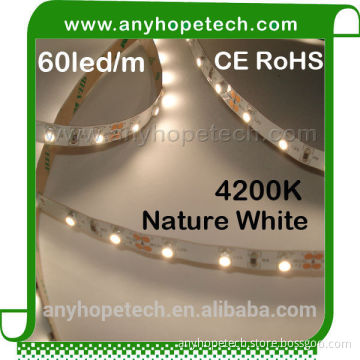

High quality alibaba DC12V 300LEDs 4200K flexible led strip 5m

  Product Description High quality alibaba DC12V 300LEDs 4200K flexible led strip 5m
Model: AH-3528NW-12-60
Extensively applied in Backlighting, concealed lighting, channel letter lighting Decorative lights for holiday, event, show exhibition
Cuttable every 3 LEDs along the cutting marks, according to pratical requirement.
       Flexible LED Light Stripe - 3528SMD 60LEDs   Note: 20LEDs/Meter, 30LEDs/Meter, 48LEDs/Meter are available.   LED Type: 3528SMD,  Taiwan Chip - Epistar

LED QTY: 60LEDs/Meter, 5Meters/Roll, 300LEDs/Roll, 300LEDs/16.40Ft

Pitch: 16.7mm / 0.66"         DC12V (Every 3 LEDs cut at 50mm / 1.97")
DC24V (Every 6 LEDs cut at 100mm / 3.94")     Cable length: 35cm / 13.78"    Max Lumens per LED: 3lm(Red), 3lm(Yellow), 5lm(Green), 3.5lm(Blue), 7lm(White), 6lm(Warm White)   Color Temperature: 2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K
Power: 4.8W/Meter, 0.4A/M(12VDC), 0.2A/M(24VDC), 24W/Roll   PCB Color: Brown, White, Black (Optional)

Model Number	Color	Typ.Flux (LM/M)	LED QTY (LEDs/M)	Voltage (DC)	Power (W/M)
AH-3528R-12/24-60	Red	180	60	12V 24V	4.8
AH-3528Y-12/24-60	Yellow	180
AH-3528B-12/24-60	Blue	210
AH-3528G-12/24-60	Green	300
AH-3528W-12/24-60	White	420
AH-3528WW-12/24-60	Warm White	360

  Super Bright Warm White: 420Lm/Meter   Super Bright Cool White: 480Lm/Meter are available.
Note: Amber, Orange, Pink, Purple color are optional.

LED Flex Strip Type	IP Protection	Size	Reference Model Number
Non waterproof	IP20	8 x 2.2mm 0.31 x 0.08"	AH-3528-12/24-60
Epoxy / Silicone series	IP65	8 x 2.5mm 0.31 x 0.09"	AH-E3528-12/24-60
Silicone tube series	IP67	10 x 4mm 0.39 x 0.16"	AH-F3528-12/24-60
U-shape silicone series	IP67	10 x 5mm 0.39 x 0.19"	AH-U3528-12/24-60
PVC Tube + Epoxy  series	IP68	10 x 4mm 0.39 x 0.16"	AH-G3528-12/24-60
All silicone series	IP68	10 x 5mm 0.39 x 0.19"	AH-S3528-12/24-60

  View angle: 120 degree   CRI: >80   CRI: >90 are available.   Lumen maintenance at 10,000hrs: 95%   Average life time: 50,000hrs   Storage temperature: -30°C~80°C / (-22ºF ~  176ºF)   Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)   Warranty: 2 years   Certification: CE RoHS WEEE         Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop   Operating driver: LED Transformer with DC12V/DC24V output   Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer     The flexible single color strip connect to power supply:         Company Information          Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.        Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.       Our Services   Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.   Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS,FedEx,bank information and terms & conditions for detailed check.   Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)   Step (4): Production Process    Step (5): Package and Shipping    Step (6): Air Way Bill Number       FAQ   Why you should use LED lighting?   Some basic advantages of LEDs: 1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.  You and our environment will be able to benefit in many ways with this type of lighting.       Packaging & Shipping  5Meters/Roll, 1 Roll into anti-static bag
 50Rolls/Carton, Carton Size: 50x40x30cm / 19.69x15.75x11.81"
           Certificate:     Factory: Welcome to visit our website: www.anyhopetech.com
